15. DISCONNECT STRAP, WIRES. CONNECTORS,
HOSES AND CABLES
(a) Disconnect the following strap, wires and connectors:
• Ground strap from LH fender apron
• Generator connector and wire
• Igniter connector
• Oil pressure sender gauge connector
• Ground strap from engine rear side
• ECM connectors
• VSV connectors
• A/C compressor connector
• (M/T only)
Starter relay connector
• Solenoid resister connector
• Data link connector 1
• (w/ ADD)
ADD switch connector
(b) Disconnect the following hoses:
• PS air hoses from gas filter and air pipe
• Brake booster hose
• (w/ Cruise Control System)
Cruise control vacuum hose
• Charcoal canister hose from canister
• VSV vacuum hoses
(c) Disconnect the following cables:
• Accelerator cable
• (A/T only)
Throttle cable
• (w/ Cruise Control System)
Cruise control cable
16. DISCONNECT HEATER HOSES
17. DISCONNECT FUEL INLET AND OUTLET HOSES
18. DISCONNECT A/C COMPRESSOR FROM ENGINE
13. REMOVE COOLING FAN

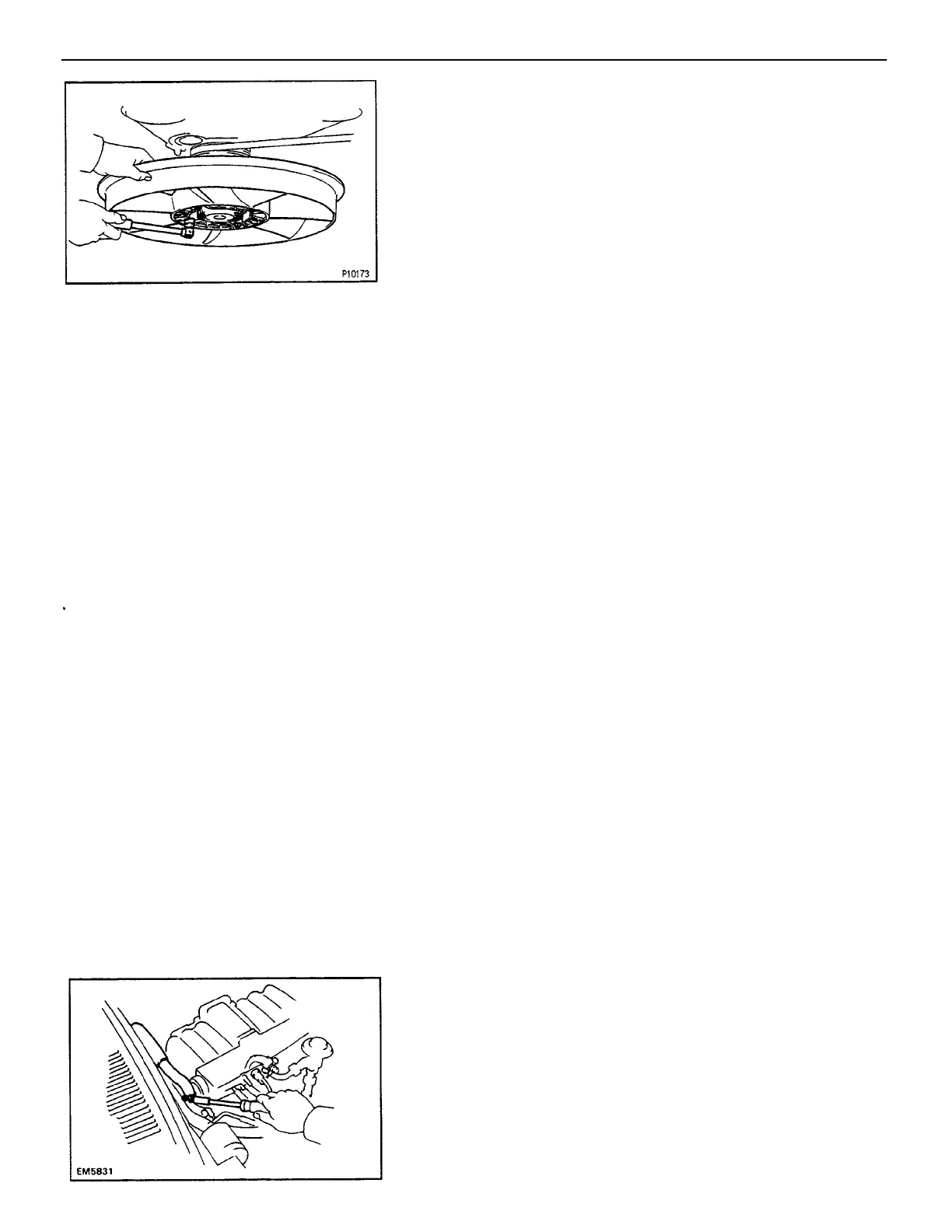

Remove the four nuts and cooling fan.
14. REMOVE GENERATOR DRIVE BELT
–ENGINE ENGINE MECHANICAL
EG2–92
