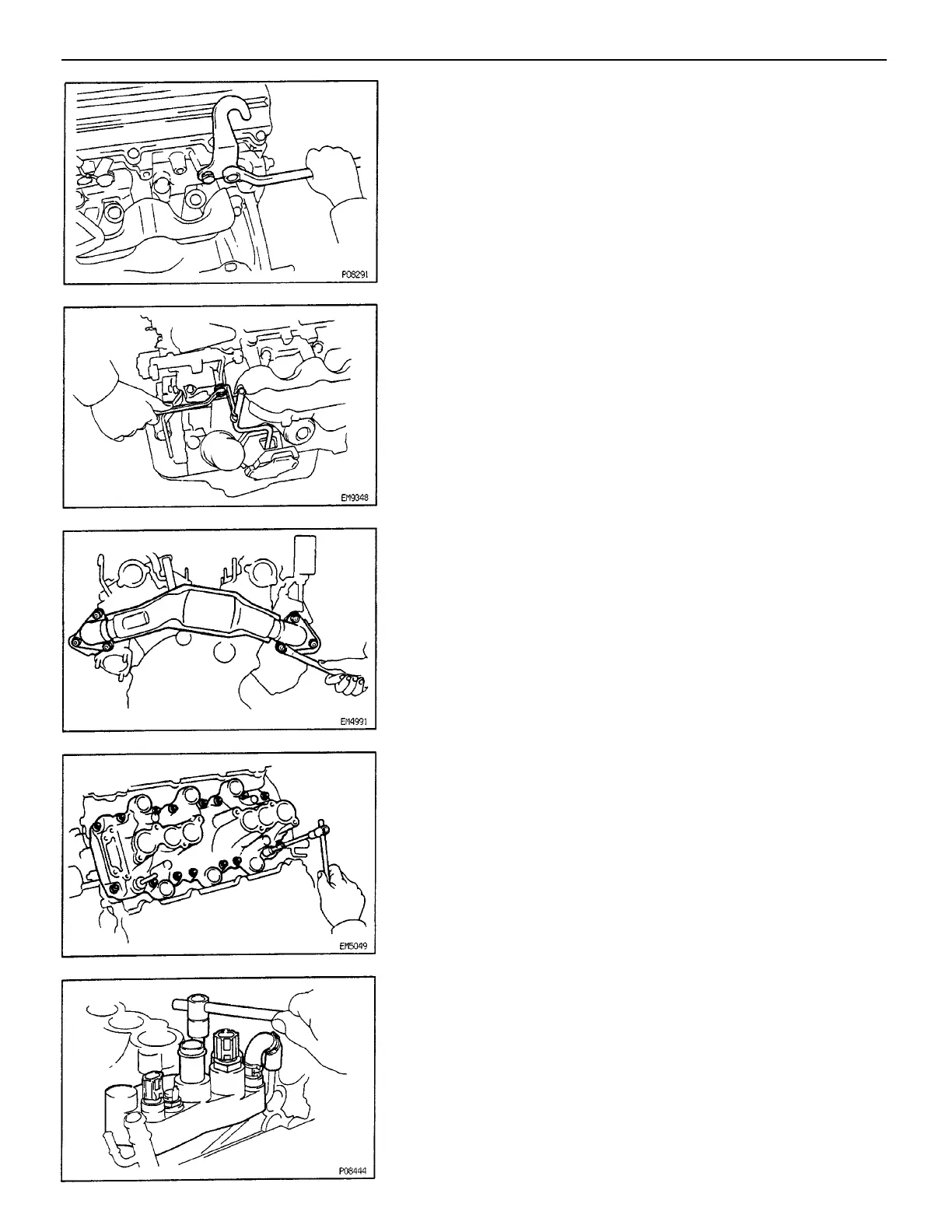

15. INSTALL WATER BY–PASS OUTLET
(a) Install a new gasket and the water by–pass outlet
with the two nuts.
Torque: 18 N–m (185 kgf–cm, 13 ft–Ibf)
(b) Connect the No.3 water by–pass hose to the No.1
water by–pass pipe.
10. INSTALL OIL DIPSTICK GUIDE AND DIPSTICK
(a) Install a new 0–ring on the oil dipstick:
(b) Install the oil dipstick guide with the bolt.
Torque: 37 N–m (380 kgf–cm, 27 ft–lbf)
(c) Install the oil dipstick.
11. INSTALL GENERATOR
12. INSTALL EXHAUST CROSSOVER PIPE
Install two new gaskets and the crossover pipe with
the six nuts.
Torque: 39 N–m (400 kgf–cm, 29 ft–Ibf)
13. INSTALL KNOCK SENSOR WIRE
14. INSTALL INTAKE MANIFOLD
install two new gaskets and the intake manifold with
the twelve bolts and four nuts.
Torque: 18 N–m (185 kgf–cm, 13 ft–lbf)
9. INSTALL NO.2 ENGINE HANGER
Install the engine hanger with the two bolts.
Torque: 40 N–m (410 kgf–cm, 30 ft–lbf)
–ENGINE ENGINE MECHANICAL
EG2–81
