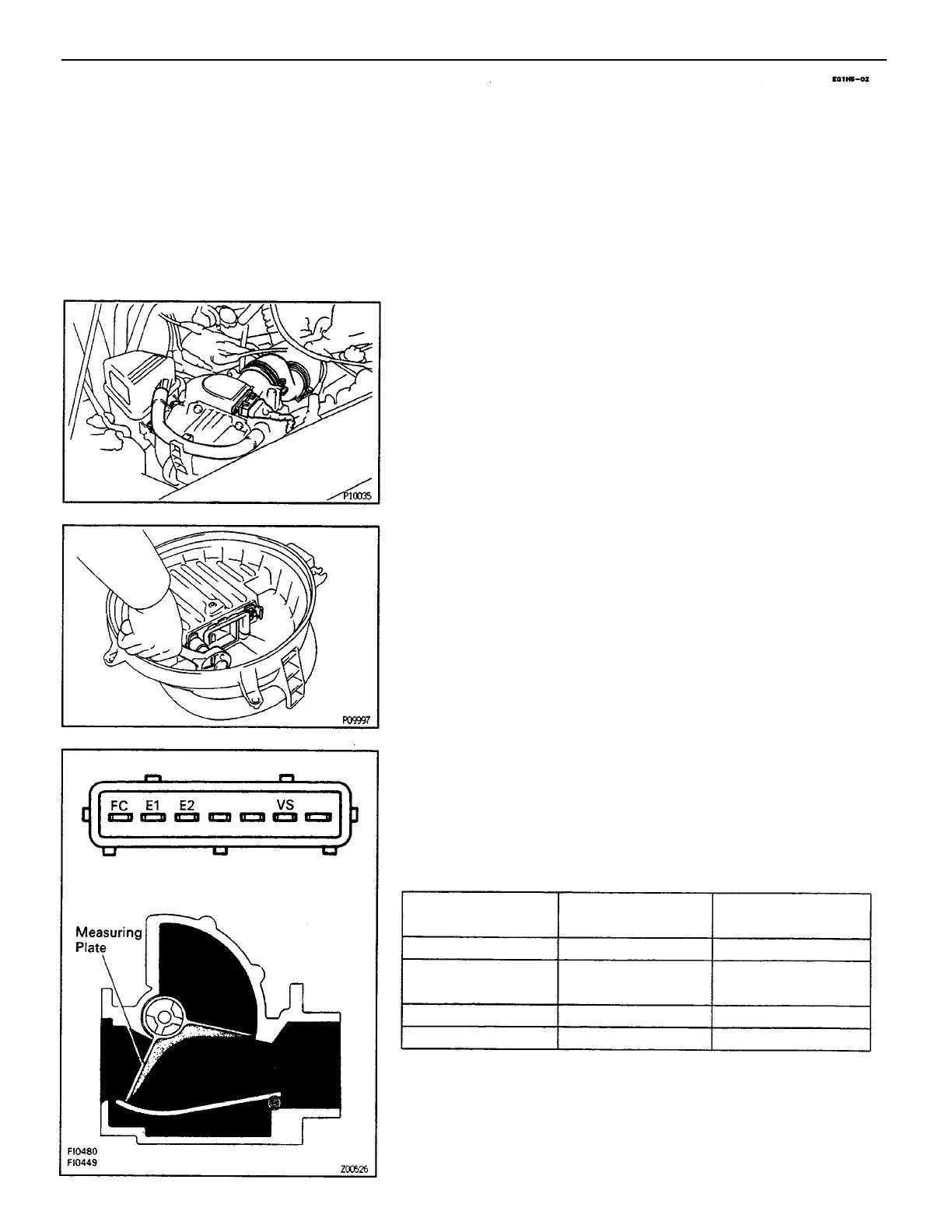

5. REMOVE AIR CLEANER CAP WITH VOLUME AIR
FLOW METER ASSEMBLY
6. REMOVE VOLUME AIR FLOW METER FROM AIR
CLEANER CAP
(a) Remove the bolt, two screws and bracket.
(b) Pry oft the lock plate, and remove the four nuts and
washers, lock plate, volume air flow meter and gasket.
VOLUME AIR FLOW METER INSPECTION
MEASURE RESISTANCE OF VOLUME AIR FLOW
METER
Using an ohmmeter, measure the resistance between
each terminal by moving the measuring plate.
2. DISCONNECT RESONATOR BRACKET
(a) Disconnect the air hose.
(b) Remove the two bolts and resonator bracket.
3. DISCONNECT VOLUME AIR FLOW METER CON–
NECTOR
4. DISCONNECT AIR CLEANER HOSE
VOLUME AIR FLOW METER REMOVAL
(See Components for Removal Installation)
1. DISCONNECT CABLE FROM NEGATIVE TERMINAL
OF BATTERY
HINT: Resistance between terminals E2 and VS will
change in a wave pattern as the measuring plate
slowly opens.
If not within specification, replace the volume air flow
meter.
Other than closed
position
Measuring plate
opening
Between
terminals
Resistance ()
Fully closed
Fully closed
20– 1,200
200–600
Fully open
E2 – VS
E 1 – FC
E1 – FC
E2 – VS
Infinity
Zero
–ENGINE MFI SYSTEM
EG2–234
