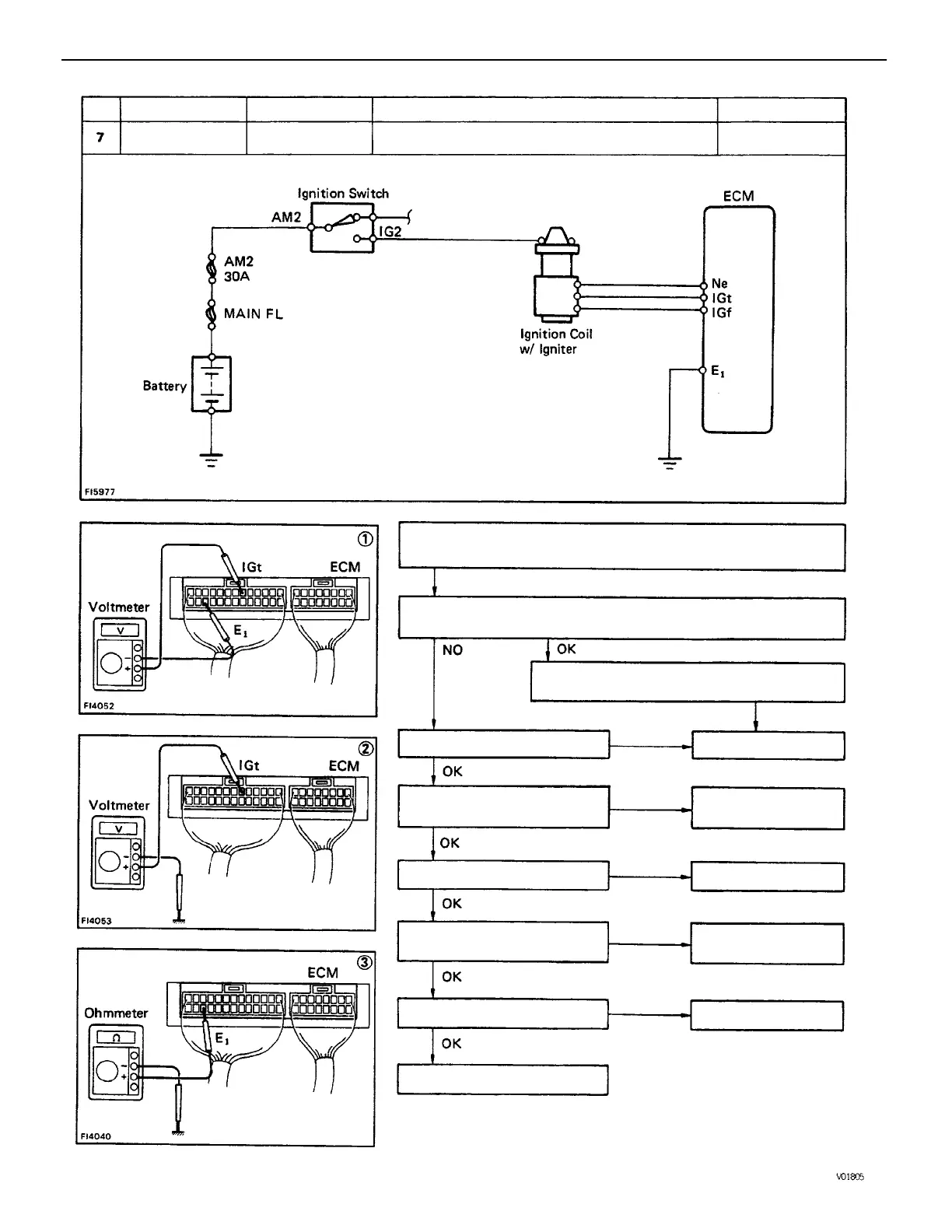

(2) Check that there is voltage between ECM terminal IGt and
body ground. (Idling)
(1) There is no voltage between ECM terminals IGt and E1.
(idling)
(3) Check wiring between ECM terminal E1
and body ground.
Check wiring between ECM
and igniter.
Check wiring between igniter
and distributor.
Try another ECM.
Repair or replace.
Repair or replace.
Repair or replace.
Repair or replace.
Check distributor.
Refer to No. 1.
Check igniter.
STD Voltage
0.7 – 1.0 v
IGt – E1
No voltage
Terminals
Condition
Replace.
Trouble
Idling
BAD
BAD
BAD
BAD
BAD
BAD
No.
–ENGINE MFI SYSTEM
EG1–134

Toyota 22R-E Specifications

General

Displacement	2.4 L (2366 cc)
Fuel System	Electronic Fuel Injection (EFI)
Compression Ratio	9.0:1
Torque	142 lb⋅ft (193 N⋅m) at 3, 400 rpm
Block Material	Cast Iron
Head Material	Aluminum
Engine Type	Inline-4
Bore x Stroke	92 mm x 89 mm (3.62 in x 3.50 in)
Valvetrain	SOHC, 2 valves per cylinder
Power Output	112 hp (84 kW) at 4, 600 rpm
