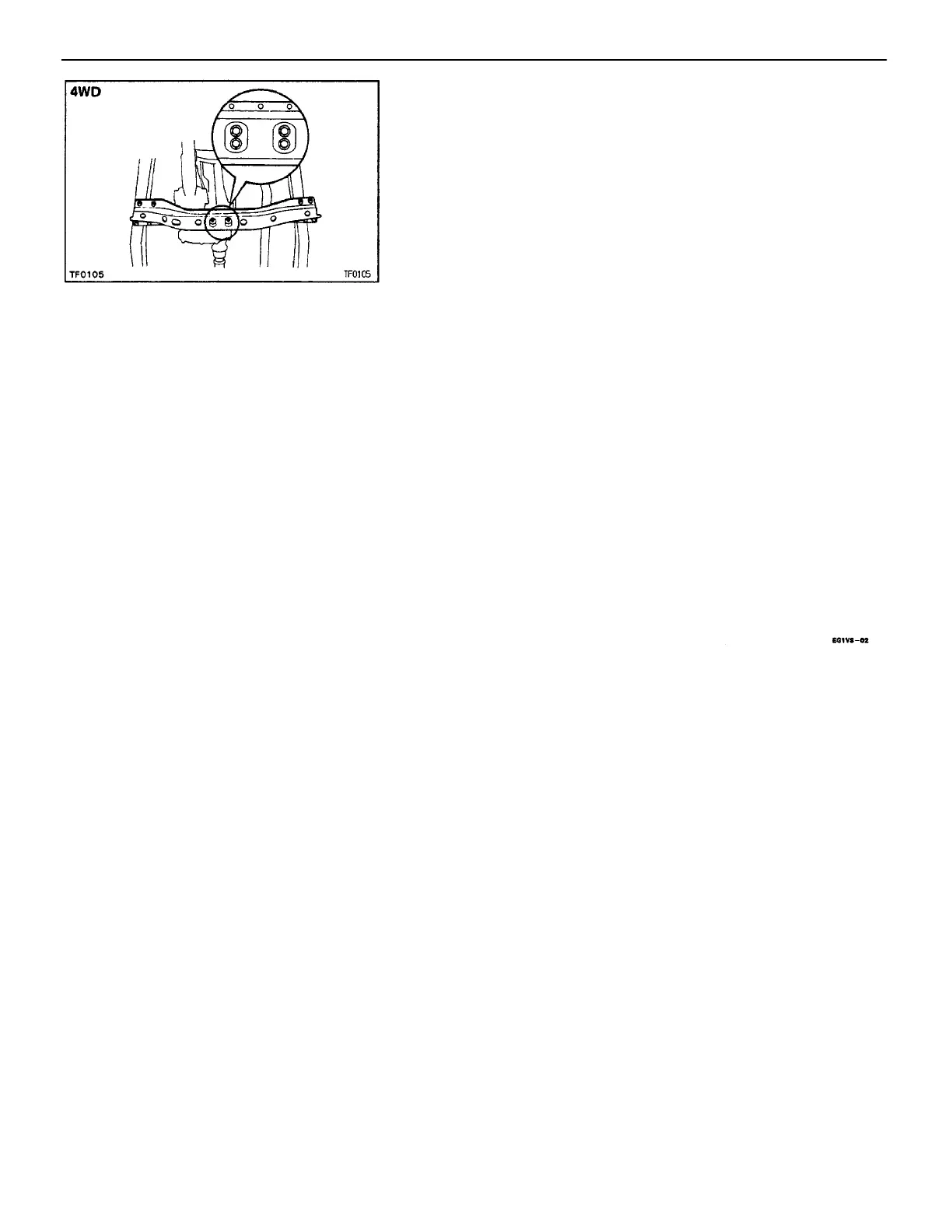

REMOVE NO.2 FRAME CROSSMEMBER FROM SIDE
FRAME
(a) Remove the four bolts from the engine rear mounting.
(b) Raise the transmission slightly with a jack.
(c) Remove the four bolts from the side frame and
remove the No.2 frame crossmember.
32. REMOVE ENGINE WITH TRANSMISSION FOR VE–
HICLE
(a) Attach the engine hoist chain to the lift brackets of
the engine.
(b) Remove the mounting nuts and bolts.
(c) Lift engine out of the vehicle slowly and carefully.
HINT: Make sure the engine is clear of all wiring and
hoses.
33. REMOVE TRANSMISSION FROM ENGINE
(a) (A/T)
Remove the A/T oil cooler pipes.
(b) Remove the starter.
(c) Remove the two stiffener plates and exhaust pipe
bracket from engine.
(d) Remove the transmission from the engine.
34. (M/T)
REMOVE CLUTCH COVER AND DISC
CYLINDER BLOCK DISASSEMBLY
(See page EG1–46)
1. REMOVE FLYWHEEL OR DRIVE PLATE
2. REMOVE REAR END PLATE
3. INSTALL ENGINE STAND FOR DISASSEMBLY
4. REMOVE CYLINDER HEAD
(See page EG1–18)
5. REMOVE TIMING CHAIN (See page EG1–40)
6. REMOVE GENERATOR (See CH section)
7. REMOVE LH ENGINE MOUNTING BRACKET AND
GENERATOR BRACKET
8. REMOVE CHAIN DAMPERS
9. REMOVE CHAIN TENSIONER
10. REMOVE OIL FILTER
(See step 2 on page EG1–236)
11. REMOVE RH ENGINE MOUNTING BRACKET, CHA–
MBER STAY AND GROUND STRAP
12. (A/T)
REMOVE FLEXIBLE HOSE CLAMP
13. REMOVE OIL PRESSURE SENDER GAUGE OR
SWITCH
14. REMOVE KNOCK CONTROL SENSOR
15. REMOVE FUEL–FILTER AND BRACKET
