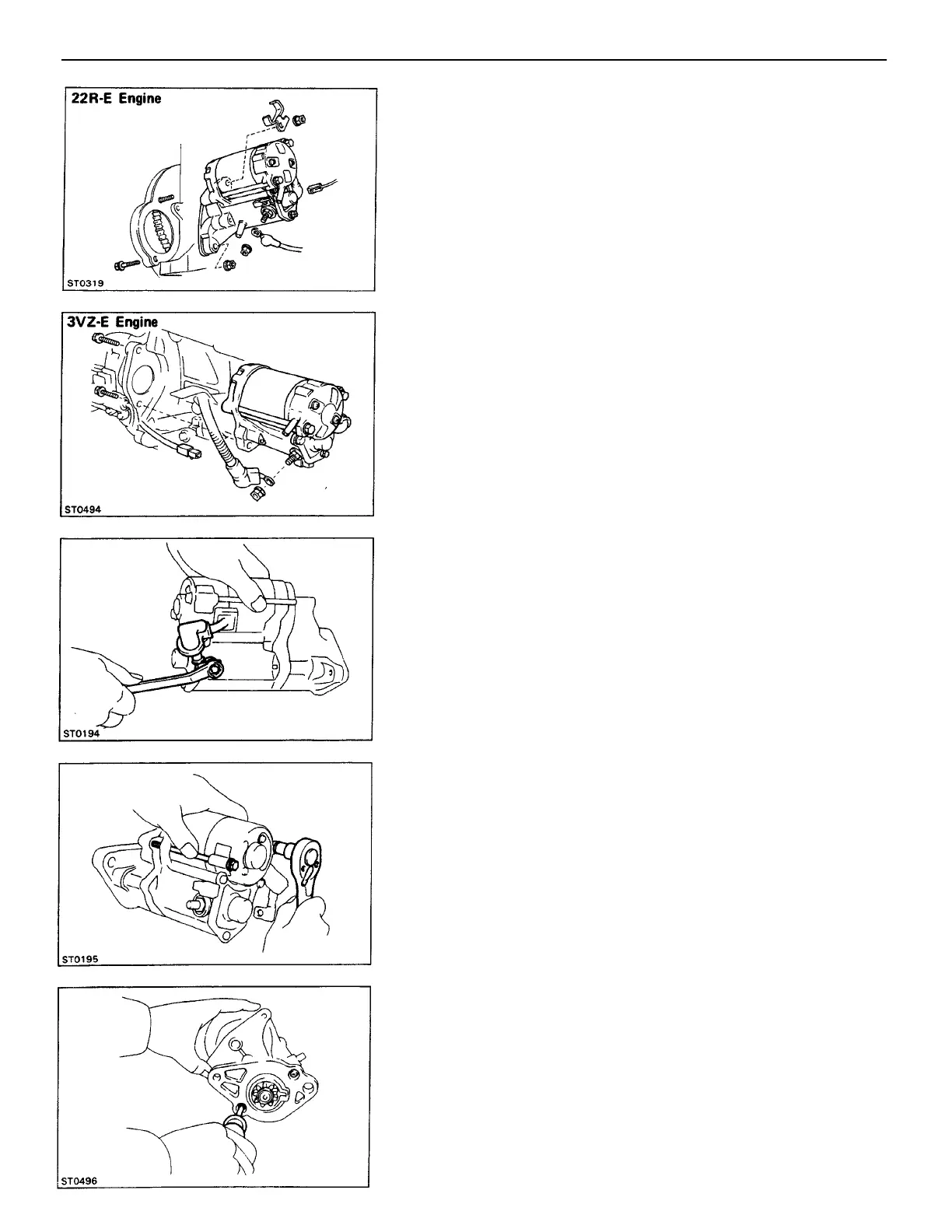

REMOVAL OF STARTER
1. DISCONNECT CABLE FROM NEGATIVE TERMINAL OF
BATTERY
2. DISCONNECT TWO WIRES FROM STARTER
(a) Remove the nut and disconnect the battery cable from
the magnetic switch on the starter motor.
(b) Disconnect the other wire from terminal 50.
3. REMOVE STARTER MOTOR
(22R–E Engine)
Remove the nut and bolt, and remove the starter motor
from the flywheel bellhousing.
(3VZ–E Engine)
Remove the two mounting bolts, and remove the starter
motor from flywheel bellhousing.
DISASSEMBLY OF STARTER
(See page ST–2)
1. REMOVE FIELD FRAME WITH ARMATURE FROM
MAGNETIC SWITCH ASSEMBLY
(a) Remove the nut and disconnect the lead wire from
the magnetic switch terminal.
(b) Remove the two through bolts. Pullout the field
frame
with the armature from the magnetic switch as-
sembly.
(c) (1.4,
1. 6 kW )
Remove the O–ring.
2. REMOVE STARTER HOUSING FROM MAGNETIC
SWITCH ASSEMBLY
(a) Remove the two screws.
–STARTING SYSTEM Starter
ST–3
