10. INSTALL EXHAUST PIPE
(a) Connect the exhaust pipe to the catalytic converter.
(b) Connect the exhaust pipe to the exhaust manifold.
(c) Install the exhaust pipe clamp.
(d) Connect the oxygen sensor connector.
11. INSTALL NO.1 FRAME CROSSMEMBER
12. (4WD)
INSTALL FRONT PROPELLER SHAFT
(See PR section)
13. (4WD)
INSTALL STABILIZER BAR
(See SA section)
14. (4WD)
INSTALL TRANSFER UNDER COVER
15. CONNECT SPEEDOMETER CABLE
(4WD)

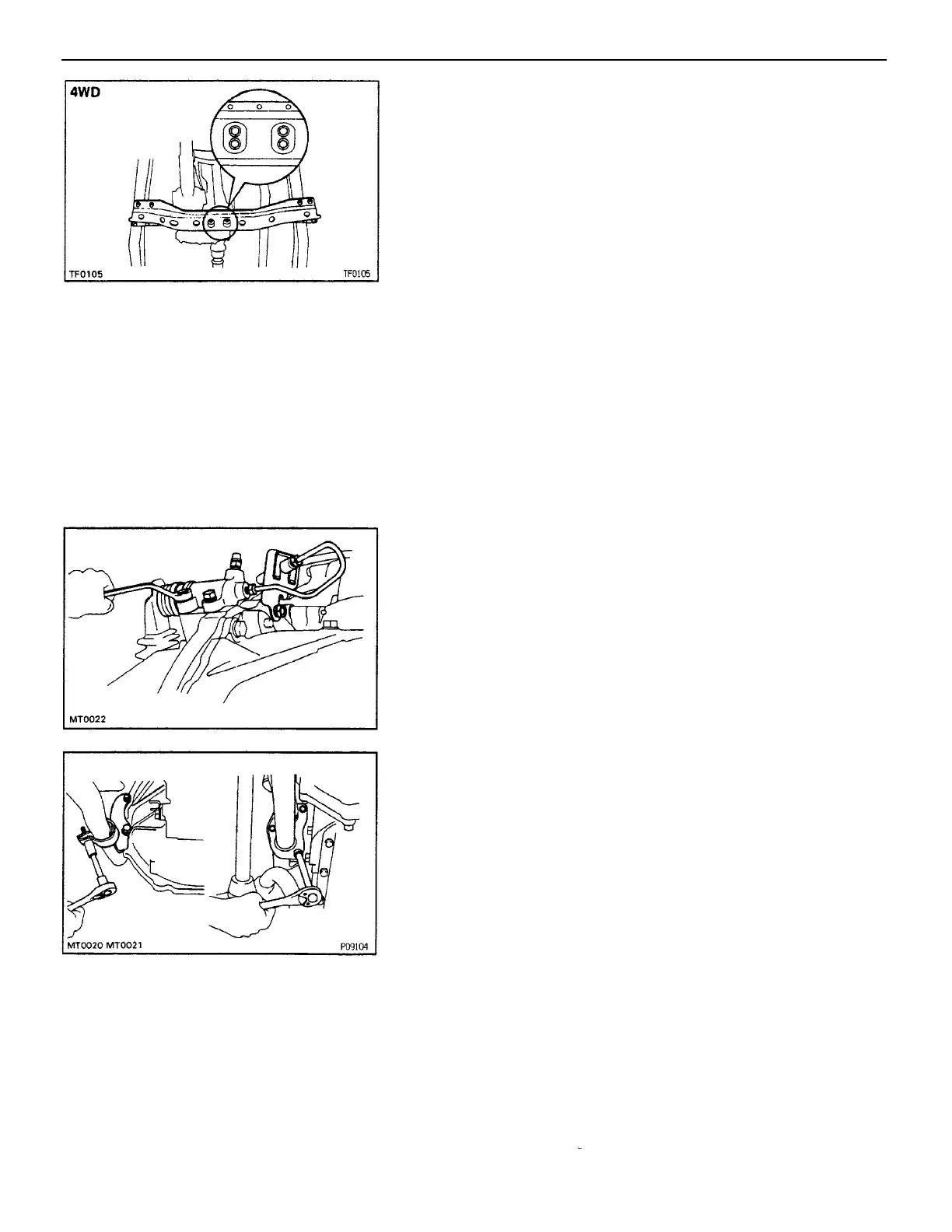

INSTALL NO.2 FRAME CROSSMEMBER
(a) Raise the transmission slightly with a jack.
(b) Install the No.2 frame crossmember to the side frame
with the bolts. Torque the bolts
Torque: 95 N–m (970 kgf–cm, 70 ft–lbf)
(c) Lower the transmission and transfer.
(d) Install the four mounting bolts to the engine rear
mounting. Torque the bolts.
Torque: 13 N–m (130 kgf–cm, 9 ft–lbf)
8. (4WD)
INSTALL BRAKE TUBE HEAT INSULATOR AND NO.
1 FRONT FLOOR HEAT INSULATOR
9. (M/T)
INSTALL CLUTCH RELEASE CYLINDER WITH
BRACKET TO TRANSMISSION
Torque:
Bracket 39 N–m (400 kgf–cm, 28 ft–lbf)
Release cylinder 12 N–m (120 kgf–cm, 9 ft–lbf)
–ENGINE ENGINE MECHANICAL
EG1–72
