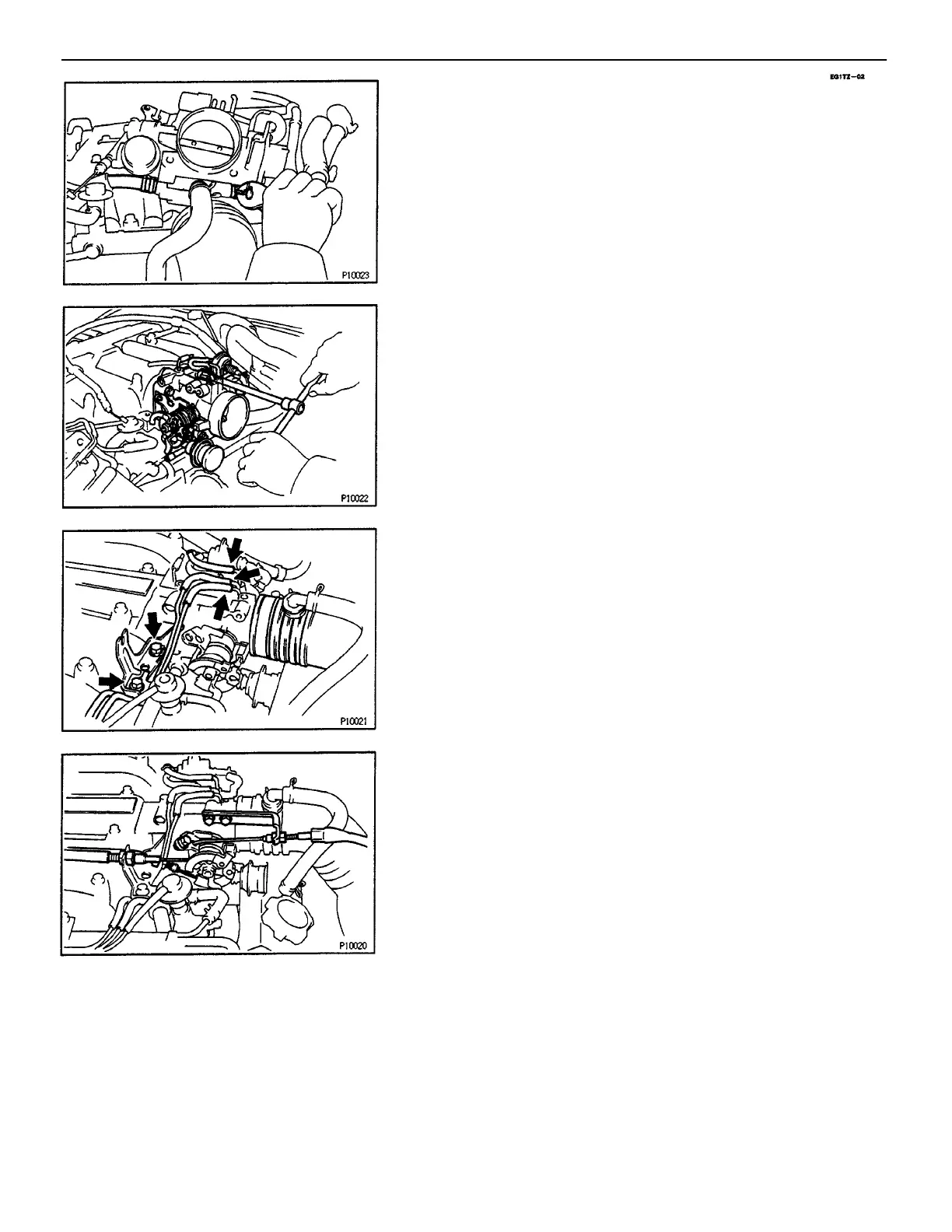

THROTTLE BODY INSTALLATION
(See Components for Removal and Installation)
1. INSTALL THROTTLE BODY
(a) Connect the No.4 and No.5 water by–pass hoses to
throttle body.
(b) Place anew gasket and install the throttle body with
the four bolts.
Torque: 18 N–m (185 kgf–cm, 13 ft–lbf)
2. CONNECT THROTTLE POSITION SENSOR CON–
NECTOR
7. REFILL WITH ENGINE COOLANT
8. CONNECT CABLE TO NEGATIVE TERMINAL OF
BATTERY
6. CONNECT FOLLOWING CABLES:
(a) (A/T)
Throttle cable
(b) Accelerator cable
(c) (w/ Cruise control)
Actuator cable with bracket
3. INSTALL ACCELERATOR CABLE BRACKET
4. CONNECT VACUUM HOSES
5. CONNECT AIR CLEANER HOSE
–ENGINE MFI SYSTEM
EG2–243
