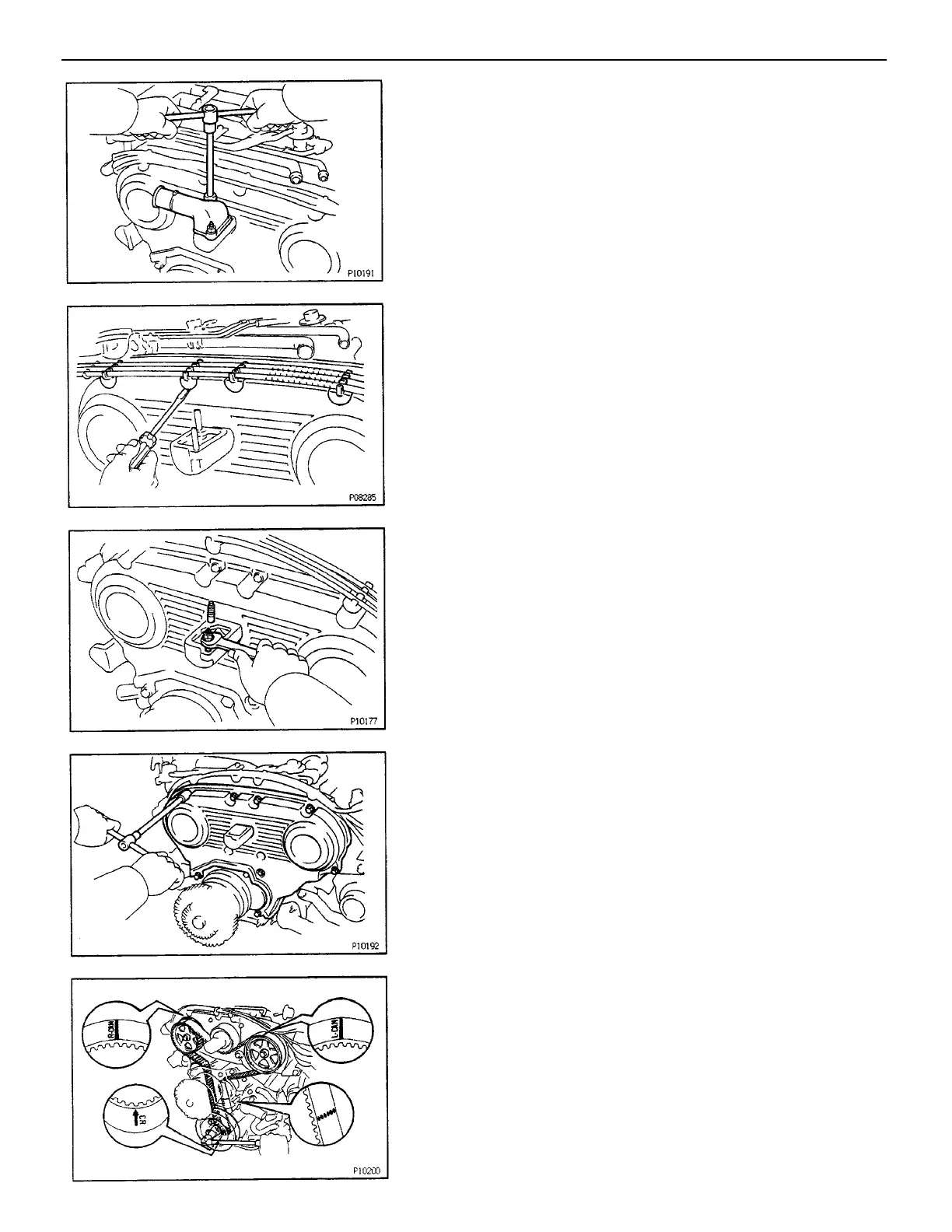

Toyota 22R-E - Remove Water Outlet; Remove No.2 Timing Belt Cover; If Re-Using Timing Belt, Check Installation Marks on Timing Belt

15. IF RE–USING TIMING BELT, CHECK
INSTALLATION MARKS ON TIMING BELT
Check that there are four installation marks on the
timing belt by turning the crankshaft pulley as shown
in the illustration.
HINT: If the installation marks have disappeared, place
a new installation mark on the timing belt before
removing each part.
14. REMOVE NO.2 TIMING BELT COVER
(a) Using a screwdriver, disconnect the four high–ten–
sion cord clamps from the mounting bolts of the No.2
timing belt cover.
(c) Remove the eleven bolts, timing belt cover and three
gaskets.
(b) Using the two water inlet nuts, remove the two stud
bolts.
13. REMOVE WATER OUTLET
Remove the two nuts and water outlet.
–ENGINE ENGINE MECHANICAL
EG2–34
