CYLINDER HEADS INSTALLATION
(See Components)

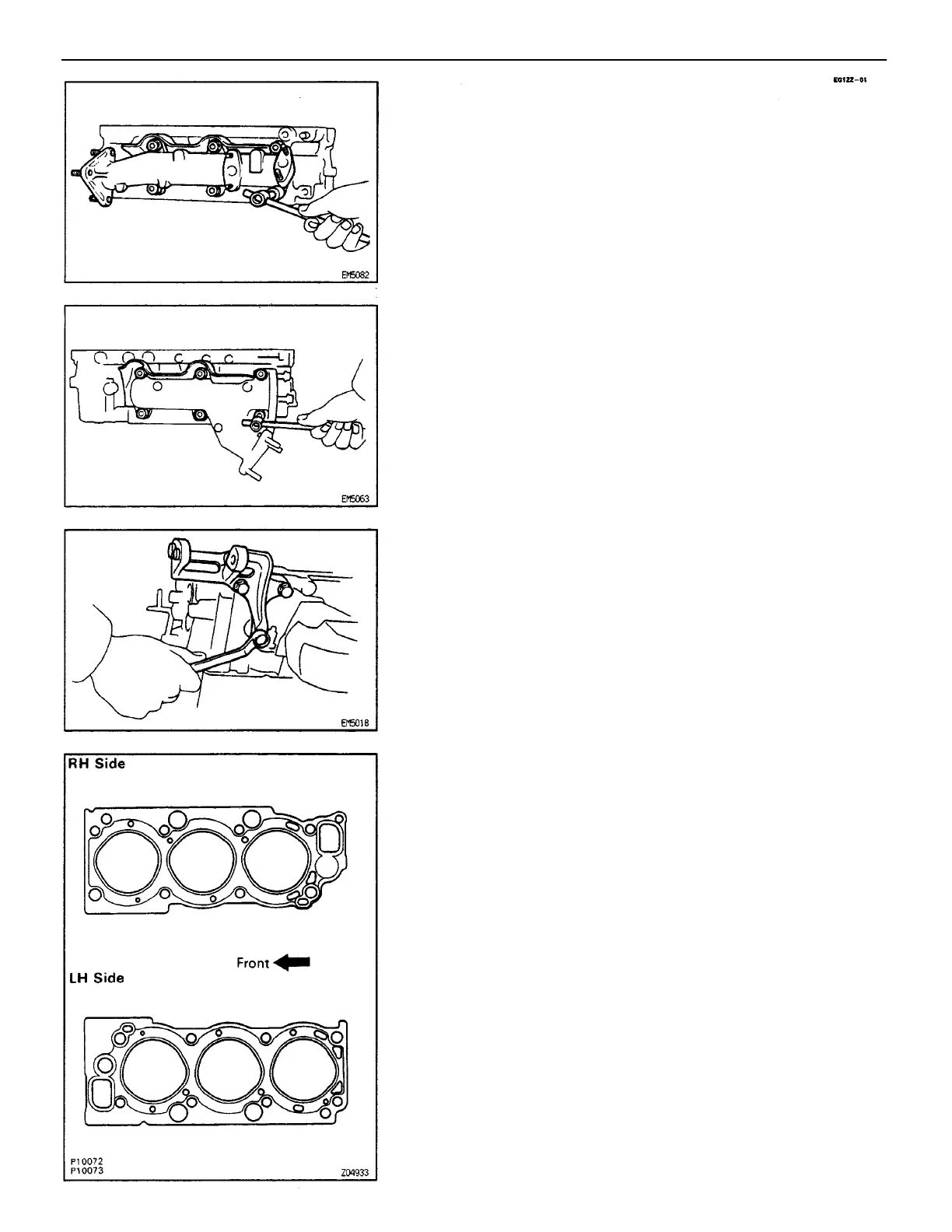

1. INSTALL RH EXHAUST MANIFOLD TO RH
CYLINDER HEAD
(a) Install a new gasket and the exhaust manifold with the
six nuts.
Torque: 38 N–m (400 kgf–cm, 29 ft–lbf)
(b) Install the exhaust manifold heat insulator with the
bolt and nut.
2. INSTALL RH EXHAUST MANIFOLD TO LH
CYLINDER HEAD
(a) Install a new gasket and the exhaust manifold with the
six nuts.
Torque: 39 N–m (400 kgf–cm, 29 ft–lbf)
(b) Install the exhaust manifold heat insulator with the
three bolts.
4. INSTALL CYLINDER HEADS
A. Place cylinder head on cylinder block
(a) Place two new cylinder head gaskets in position on
the cylinder block.
NOTICE: Be careful of the installation direction.
(b) Place the two cylinder heads in position on the cyl–
inder head gasket.
3. INSTALL GENERATOR BRACKET
Install the bracket with the three bolts.
Torque: 37 N–m (38o kgf–cm, 27 ft–!bf)
–ENGINE ENGINE MECHANICAL
EG2–76
