REMOVAL OF GENERATOR (22R–E)
1. DISCONNECT CABLE FROM NEGATIVE TERMINAL OF
BATTERY
2. (w/ PS)
DRAIN COOLANT

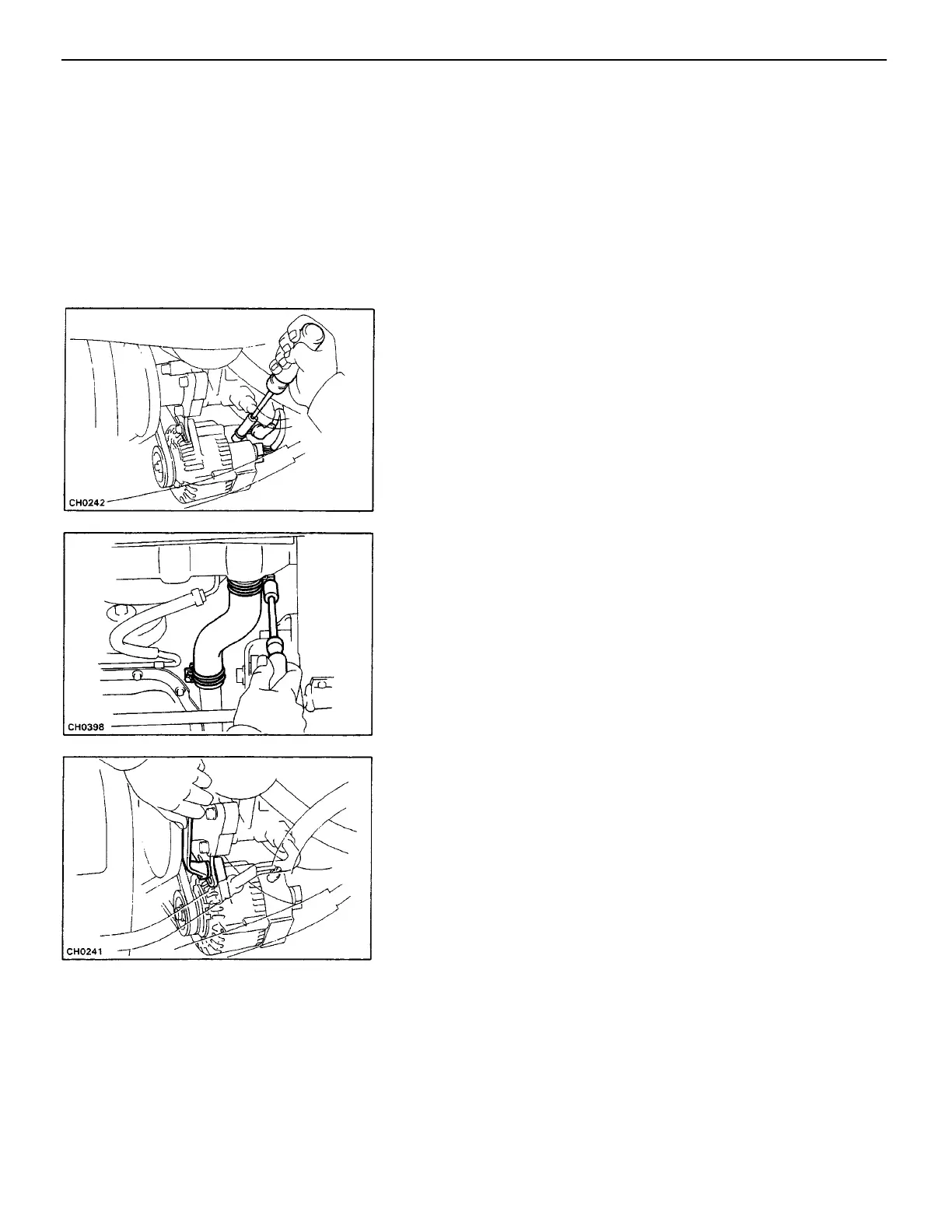

5. REMOVE GENERATOR DRIVE BELT
(a) Loosen the generator pivot and remove the adjusting
bolt.
(b) Remove the drive belt.
4. (w/ PS)
REMOVE WATER INLET HOSE
(a) Remove the engine under cover.
(b) Remove the water inlet hose.
(c) (with A/C)
Remove the No. 2 fan shroud.
3. DISCONNECT WIRING FROM GENERATOR
(a) Disconnect the connector from the generator.
(b) Remove the nut and wire from the generator.
6. REMOVE GENERATOR
(a) Hold the generator and remove the pivot.
(b) Remove the generator.
–CHARGING SYSTEM Generator
CH–6
