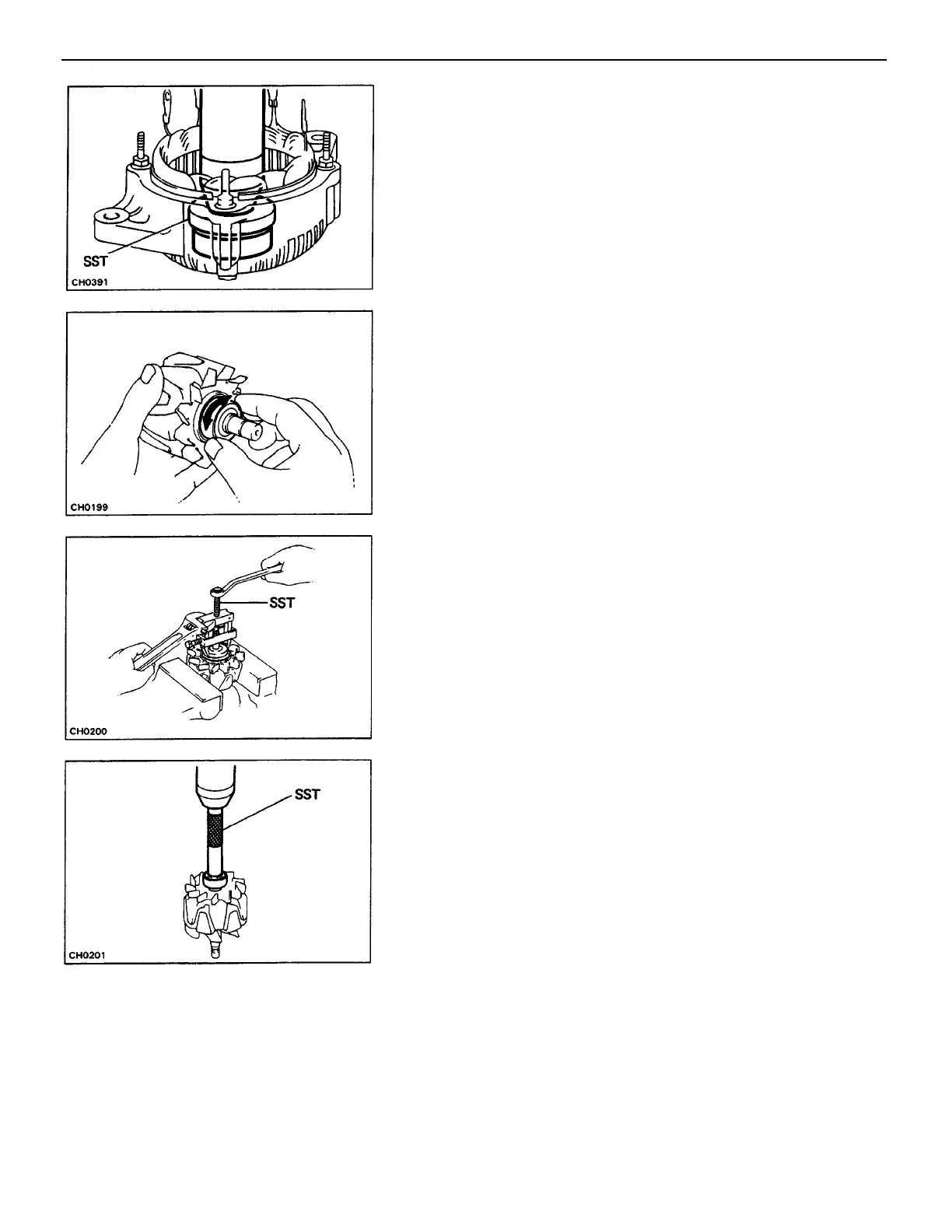

(c) Using SST and a press, press the front bearing into
the drive end frame.
SST 09608–20012 (09608–00030)
(d) Install the bearing retainer with the four screws.
4. IF NECESSARY, REPLACE REAR BEARING
(a) Using SST, remove the bearing cover and bearing.
SST 09820–00021
(b) Using SST and a press, press in a new bearing and
the bearing cover.
SST 09285–76010
3. INSPECT REAR BEARING
Check that the bearing is not rough or worn.
–CHARGING SYSTEM Generator
CH–13

Toyota 22R-E Specifications

General

Displacement	2.4 L (2366 cc)
Fuel System	Electronic Fuel Injection (EFI)
Compression Ratio	9.0:1
Torque	142 lb⋅ft (193 N⋅m) at 3, 400 rpm
Block Material	Cast Iron
Head Material	Aluminum
Engine Type	Inline-4
Bore x Stroke	92 mm x 89 mm (3.62 in x 3.50 in)
Valvetrain	SOHC, 2 valves per cylinder
Power Output	112 hp (84 kW) at 4, 600 rpm
