Toyota 22R-E - Inspect Dash Pot (DP) (M;T)

3. (M/T)

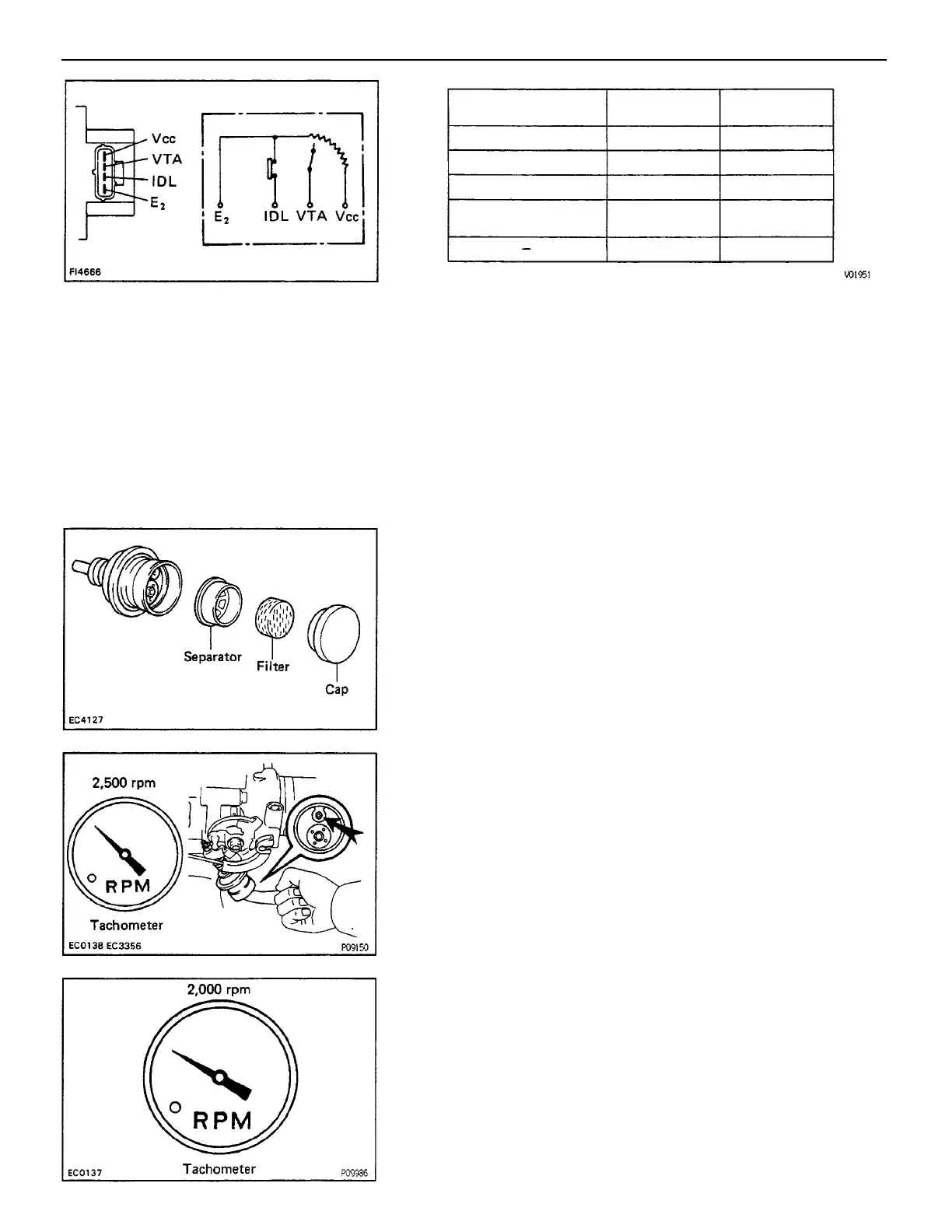

INSPECT DASH POT (DP)
A. Warm up engine
Allow the engine to warm up to normal operating
temperature.
B. Check idle speed and adjust if necessary
(See page MA–11)
Idle speed: 750 rpm
D. Check and adjust dash pot (DP) setting speed
(a) Maintain engine speed at 2,500 rpm.
(b) Plug the VTV hole with your finger.
(c) Release the throttle valve.
(d) Check the DP is set.
DP setting speed: 2,000 rpm
C. Remove cap, filter, and separator from DP
Clearance between
lever and stop screw
Throttle valve fully
open
0.57 mm 10.0224 in.)
0.85 mm (0.0335 in.)
3.1 – 12.1 k
0.47 – 8.1 k
Between
terminals
2.3 k or less
3.9 – 9.4 k

0 mm 10 in.
Resistance
VTA – E2
VTA – E2
Vcc – E2
IDL – E2
IDL – E2
Infinity
–ENGINE MFI SYSTEM
EG1–198
