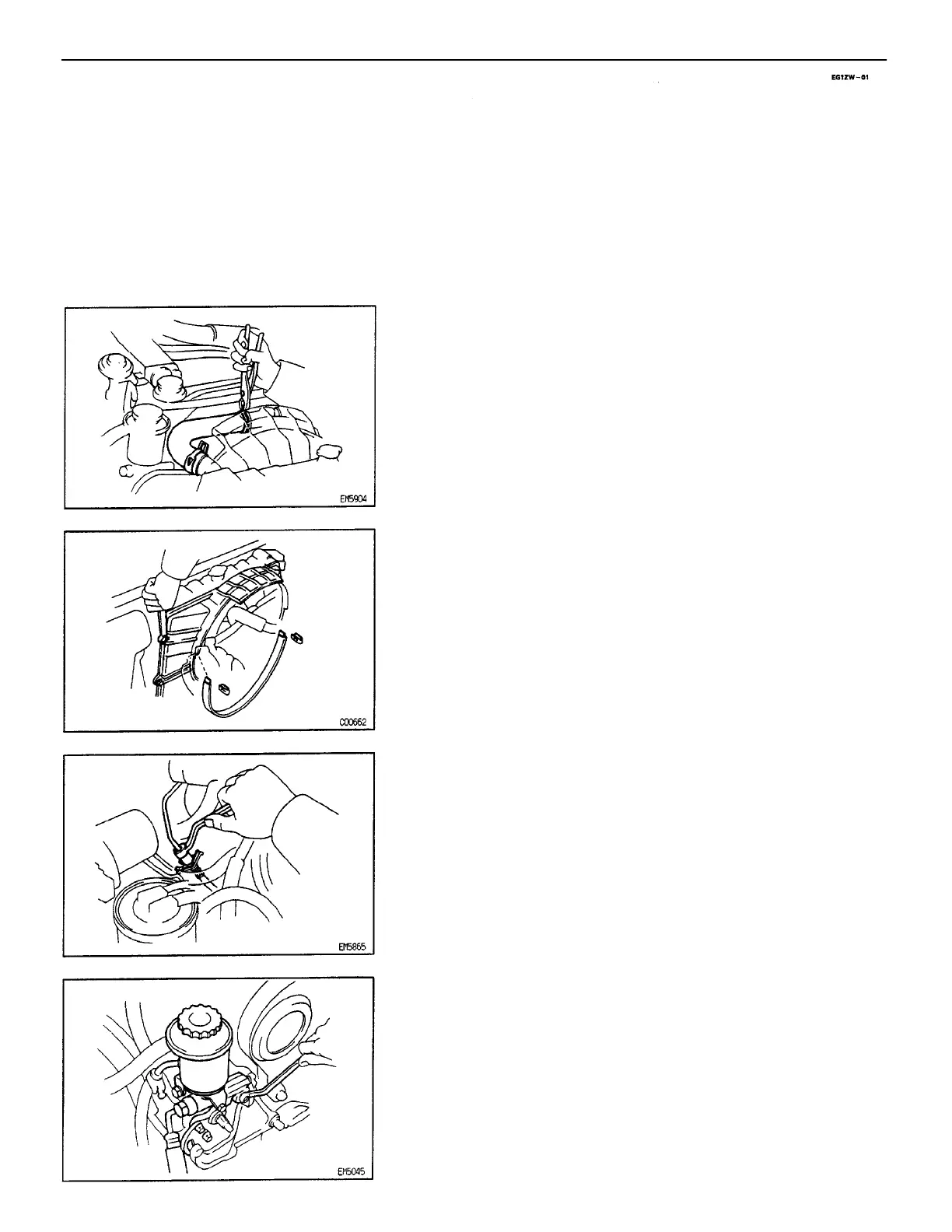

1. DISCONNECT CABLE FROM NEGATIVE TERMINAL
OF BATTERY
2. REMOVE AIR CLEANER AND HOSE
3. DRAIN ENGINE COOLANT
4. REMOVE RADIATOR
(a) Disconnect the reservoir hose.
(b) (A/T only)
Disconnect the oil cooler hoses.
(c) Remove the radiator hoses.
6. REMOVE PS DRIVE BELT AND PUMP PULLEY
7. DISCONNECT PS PUMP FROM ENGINE
8. REMOVE A/C DRIVE BELT
(d) Remove the two clips and No.2 fan shroud.
(e) Remove the four bolts and No.1 fan shroud.
(f) Remove the four bolts and radiator.
5. (M/T only)
DISCONNECT CLUTCH RELEASE CYLINDER HOSE
CYLINDER HEADS REMOVAL
–ENGINE ENGINE MECHANICAL
EG2–51
