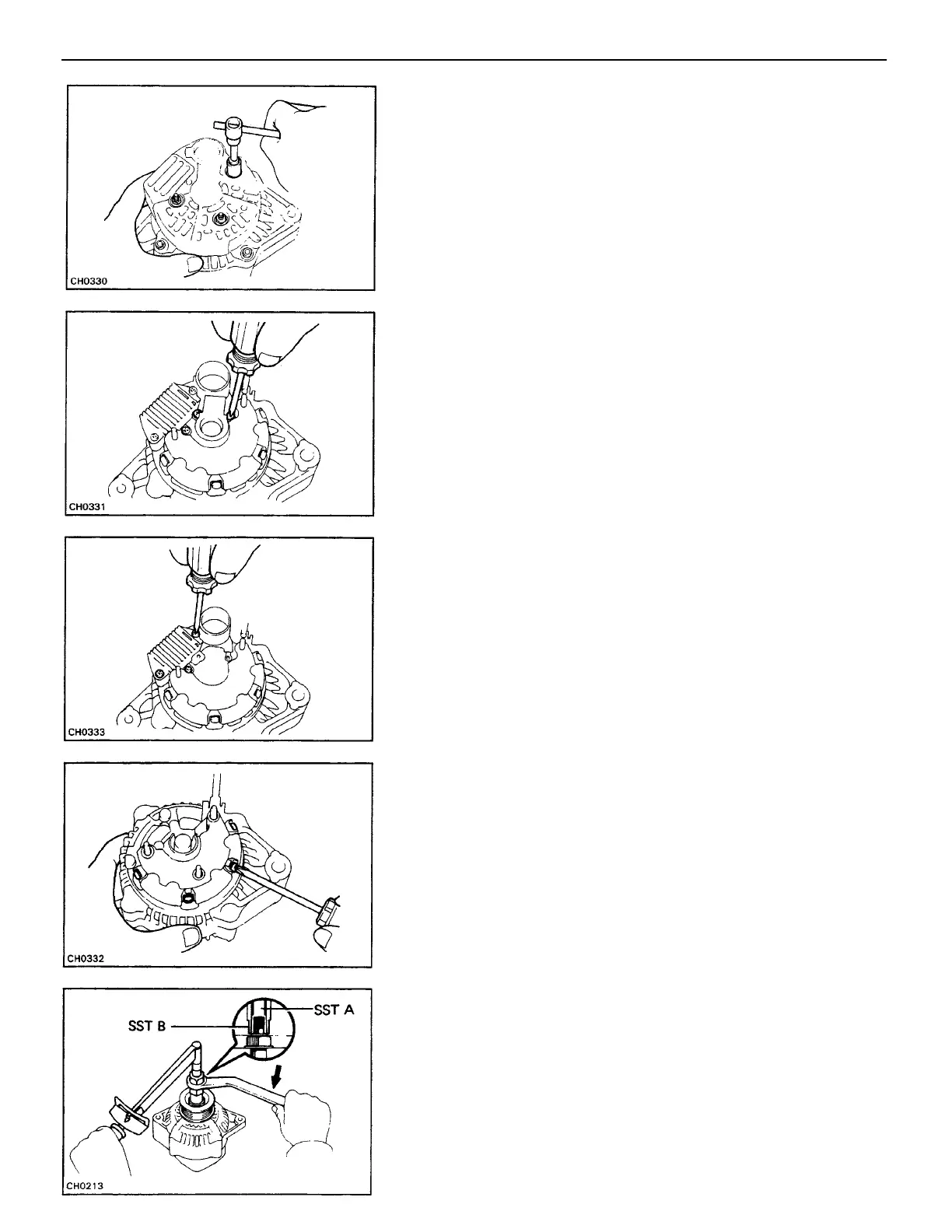

5. REMOVE PULLEY
(a) Hold SST A with a torque wrench, and tighten SST
B clockwise to the specified torque.
SST 09820–63010
Torque: 39 N – m(400 kgf – cm, 29 ft – Ibf )
(b) Check that SST A is secured to the rotor shaft.
DISASSEMBLY OF GENERATOR
(See page CH–5)
1. REMOVE REAR END COVER
(a) Remove the nut and terminal insulator.
(b) Remove the three nuts and end cover.
4. REMOVE RECTIFIER HOLDER
(a) Remove the four screws and rectifier holder.
(b) Remove the four rubber insulators.
2. REMOVE BRUSH HOLDER
Remove the two screws, brush holder and cover.
3. REMOVE IC REGULATOR
Remove the three screws and IC regulator.
–CHARGING SYSTEM Generator
CH–8
