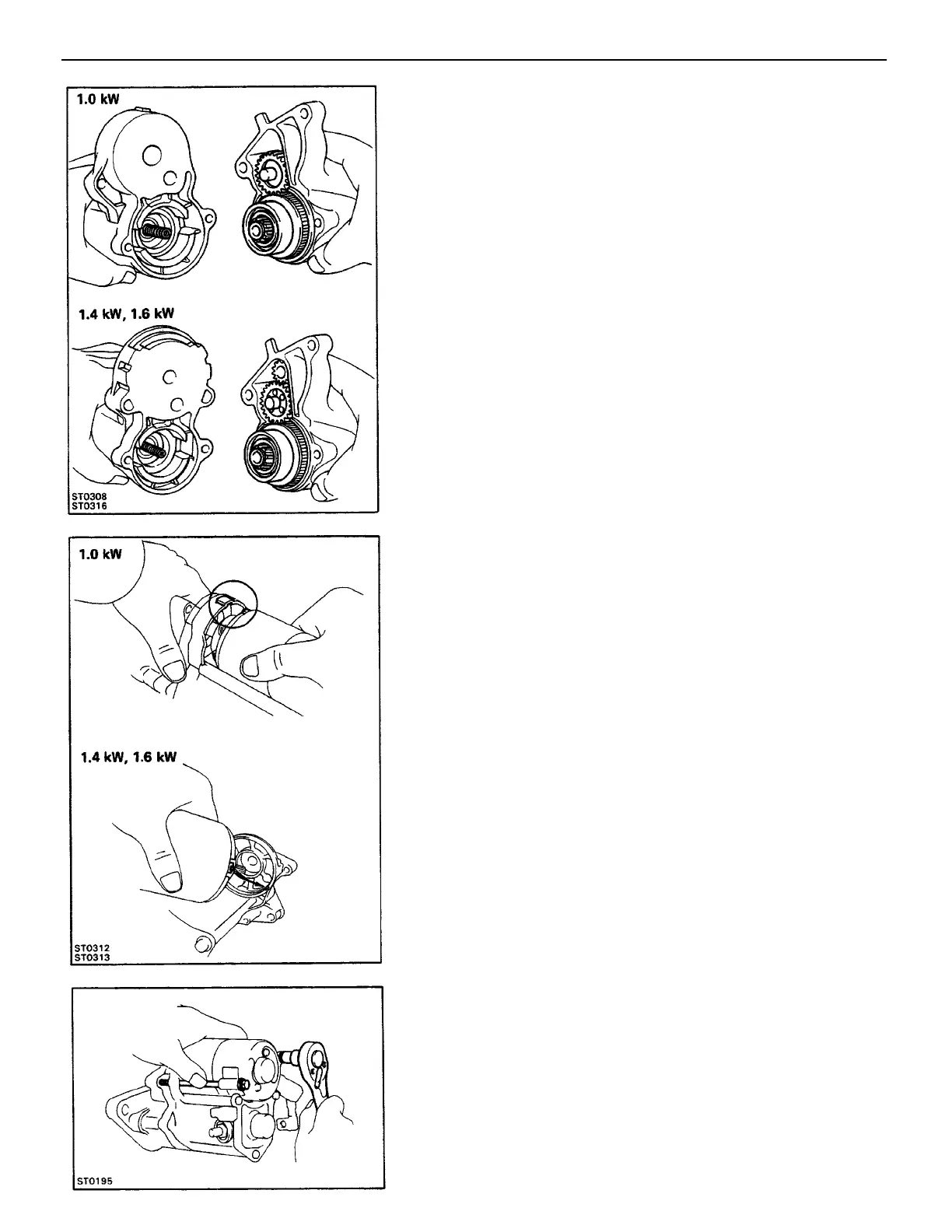

6. INSTALL FIELD FRAME WITH ARMATURE TO
MAGNETIC SWITCH ASSEMBLY
(a) (1.4, 1. 6 kW)
Place the O–ring on the field frame.
(b) Align the protrusion of the field frame with the cutout
of the magnetic switch.
5. INSTALL STARTER HOUSING
(a) Apply grease to the return spring.
(b) Insert the return spring into the magnetic hole.
(e) Place the starter housing on the magnetic switch and
install the two screws.
(c) Install the two through bolts.
(d) Connect the lead wire to the magnetic switch ter-
mi¿na1 C, and install the nut.
–STARTING SYSTEM Starter
ST–10
