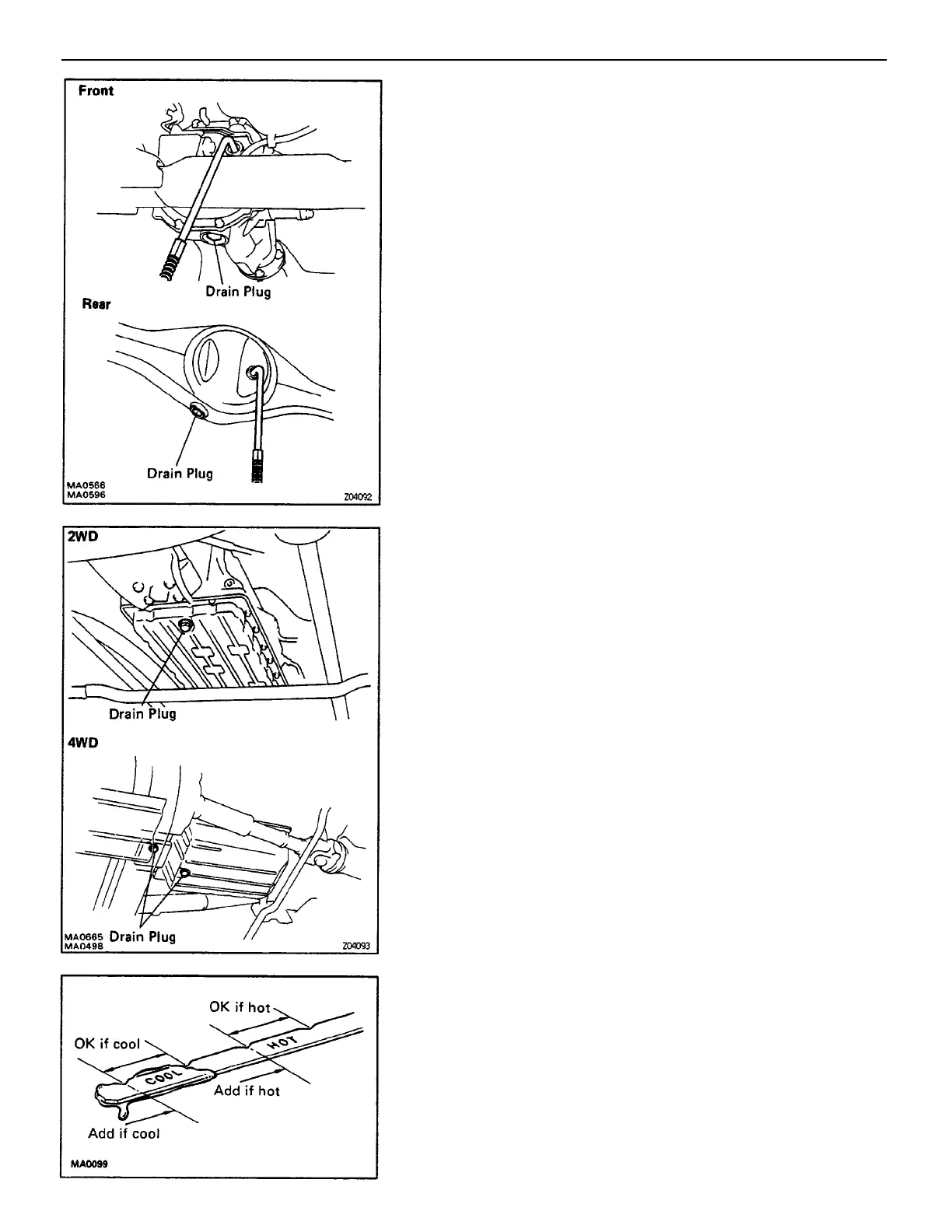

26. REPLACE AUTOMATIC TRANSMISSION FLUID
(a) Remove the drain plug(s) and drain the fluid.
(b) Reinstall the drain plug(s) securely.
(c) With the engine OFF, add new fluid through the dip–
stick tube.
Fluid:
ATP DEXRON II
Drain and refill capacity:
2WD
A43D 2.4 liters (2.5 US qts, 2.1 Imp. qts)
A340E 1.6 liters (1.7 US qts, 1.4 Imp. qts)
4WD
A340H 4.5 liters (4.8 US qts, 4.0 Imp. qts)
A340F 2.0 liters (2.1 US qts, 1.8 Imp. qts)
Differential –
2WD
7.5 in. 1.35 liters (1.4 US qts, 1.2 Imp. qts)
8.0 in. 1.8 liters (1.9 US qts, 1.6 Imp. qts)
4WD
Front Standard differential
1.6 liters (1.7 US qts, 1.4 Imp. qts)
A.D.D.
1.86 liters (2.0 US qts, 1.6 Imp. qts)
Rear
2.2 liters 2.3 US qts, 1.9 Imp. qts)
(d) Start the engine and shift the selector into ail posi–
tions from ”P” through ”L” and then shift into ”P”.
(e) (A340H)
Shift the transfer lever position: H2→H4→L4 and L4
→H4→H2.
(f) With the engine idling, check the fluid level.
Add fluid up to the cool level on the dipstick.
–MAINTENANCE MAINTENANCE OPERATIONS
MA–20
