DESCRIPTION

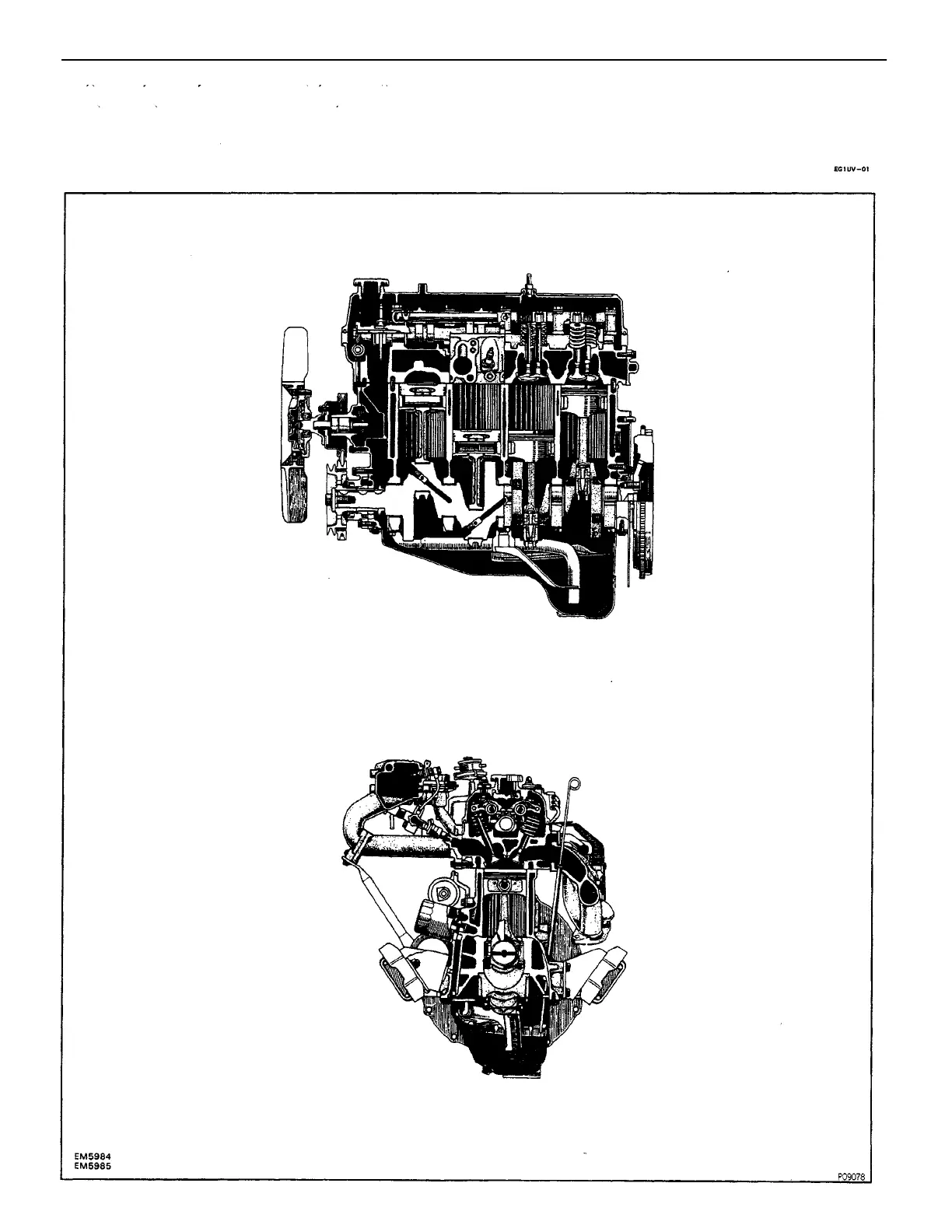

The 22R–E engine is an in–line 4 cylinder 2.4 liter OHC 8 valve engine.

ENGINE MECHANICAL

–ENGINE ENGINE MECHANICAL

EG1–2
