(e) Temporarily install the oil cooler and bracket assembly
with the union bolt and two bolts.
(f) Tighten the union bolt.
Torque: 59 N–m (600 kgf–cm. 43 ft –lbf)
(g) Install the two bolts.
Torque: 39 N–m (400 kgf–cm, 29 ft–Ibf)
(b) Install new gasket and O–ring to the union bolt.
(c) Apply a light coat of engine oil on the O–ring.
(d) Apply a light coat of engine oil on the threads of the
union bolt.
7. (2WD)
INSTALL OIL COOLER AND BRACKET ASSEMBLY
(a) Install a new 0–ring to the oil cooler bracket.

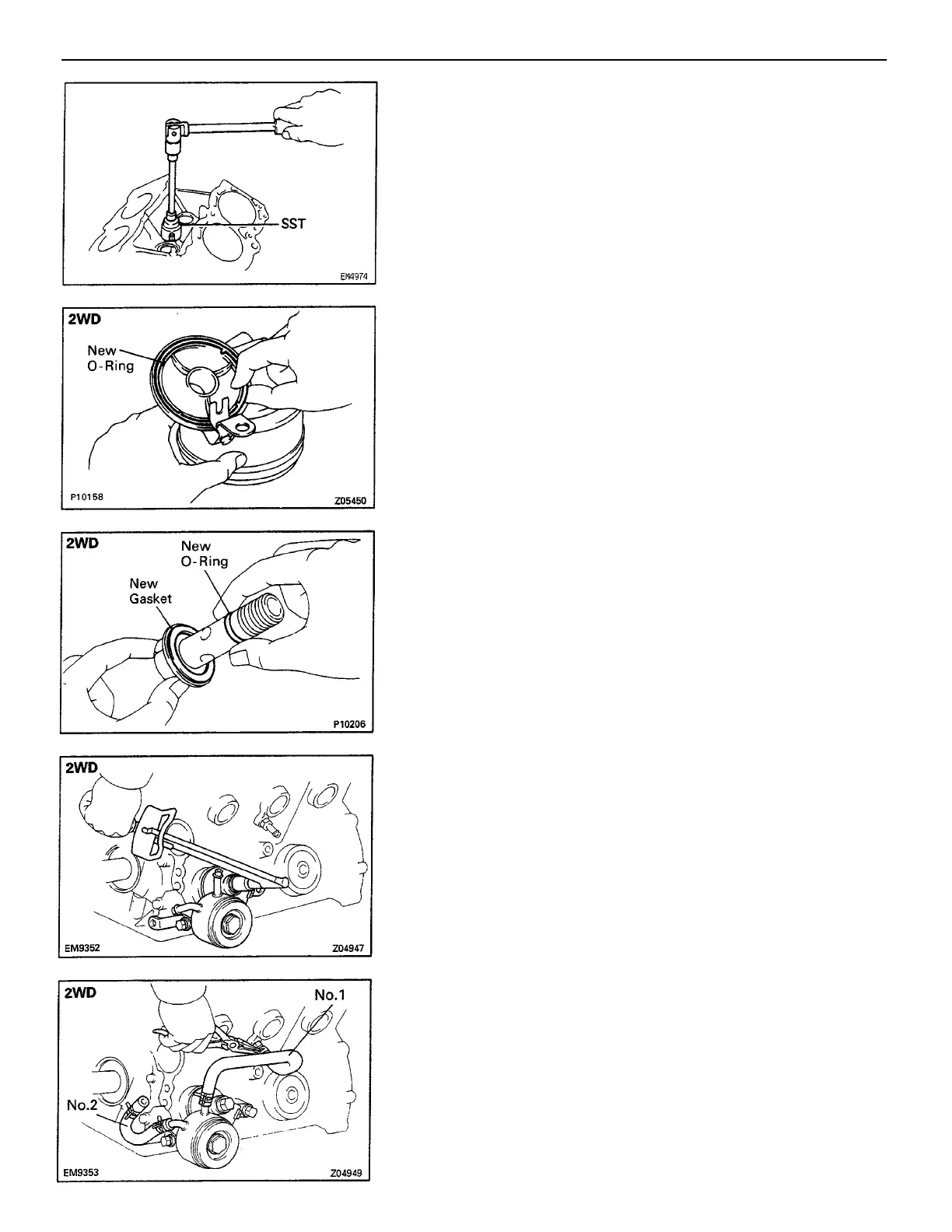

6. INSTALL KNOCK SENSOR
Using SST, install the knock sensor.
SST 09817–16011
(h) install the No.1 and No.2 oil cooler hoses.
–ENGINE ENGINE MECHANICAL
EG2–125
