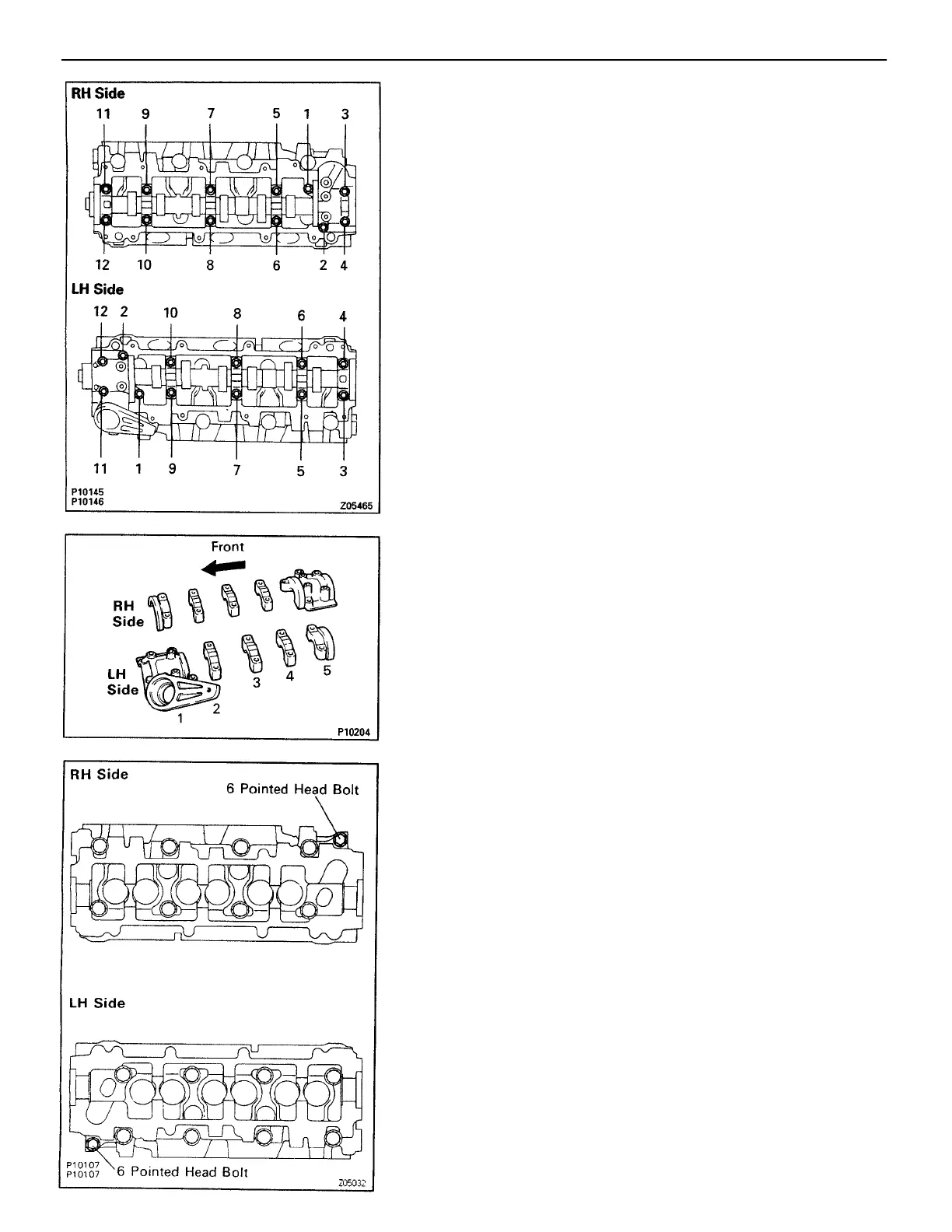

36. REMOVE CAMSHAFTS
(a) Uniformly loosen and remove the twelve bearing cap
bolts one side of each cylinder head in several passes,
in the sequence shown, then do the other side as
shown.
(b) Remove the ten camshaft bearing caps, two oil seals
and two camshafts.
37. REMOVE CYLINDER HEADS
(a) Remove the cylinder head (6 pointed head) bolt from
each cylinder head.
HINT: Arrange the bearing caps in correct order.
–ENGINE ENGINE MECHANICAL
EG2–59
