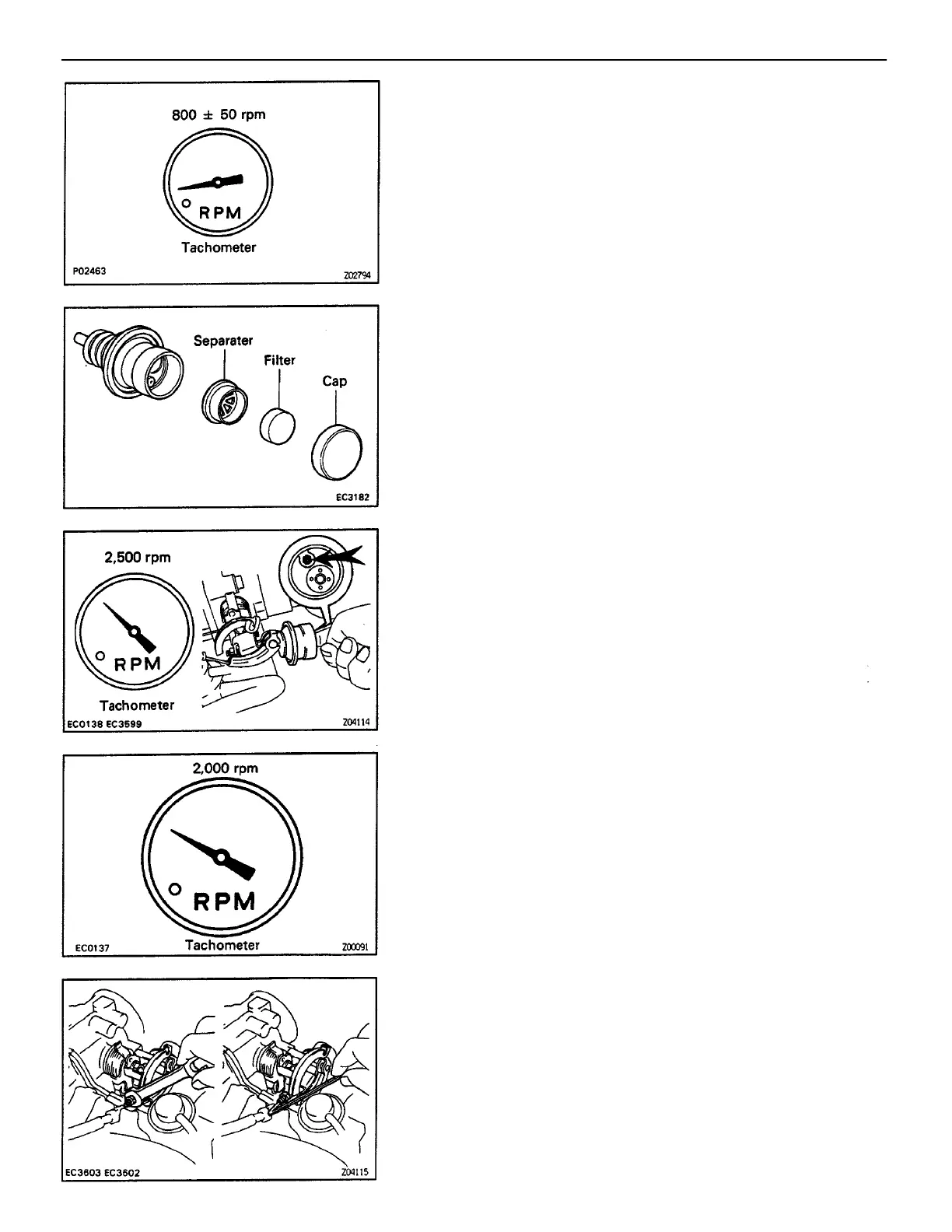

3. INSPECT DASHPOT (DP)
A. Warm up engine
Allow the engine to warm up to normal operating
temperature.
B. Check idle speed and adjust, if necessary
(See page EG2–27)
Idle speed:
800 ± 50 rpm
(e) If not as specified, adjust with the DP adjusting screw.
D. Check and adjust DP setting speed
(a) Maintain engine speed at 2,500 rpm or more.
(b) Plug the VTV hole with your finger.
(c) Release the throttle valve.
(d) Check the DP is set.
DP setting speed:
2,000 ± 200 rpm
C. Remove cap, filter and separator from DP
–ENGINE MFI SYSTEM
EG2–237
