INSTALLATION OF STARTER
1. INSTALL STARTER MOTOR ON TRANSAXLE
(22R–E Engine)

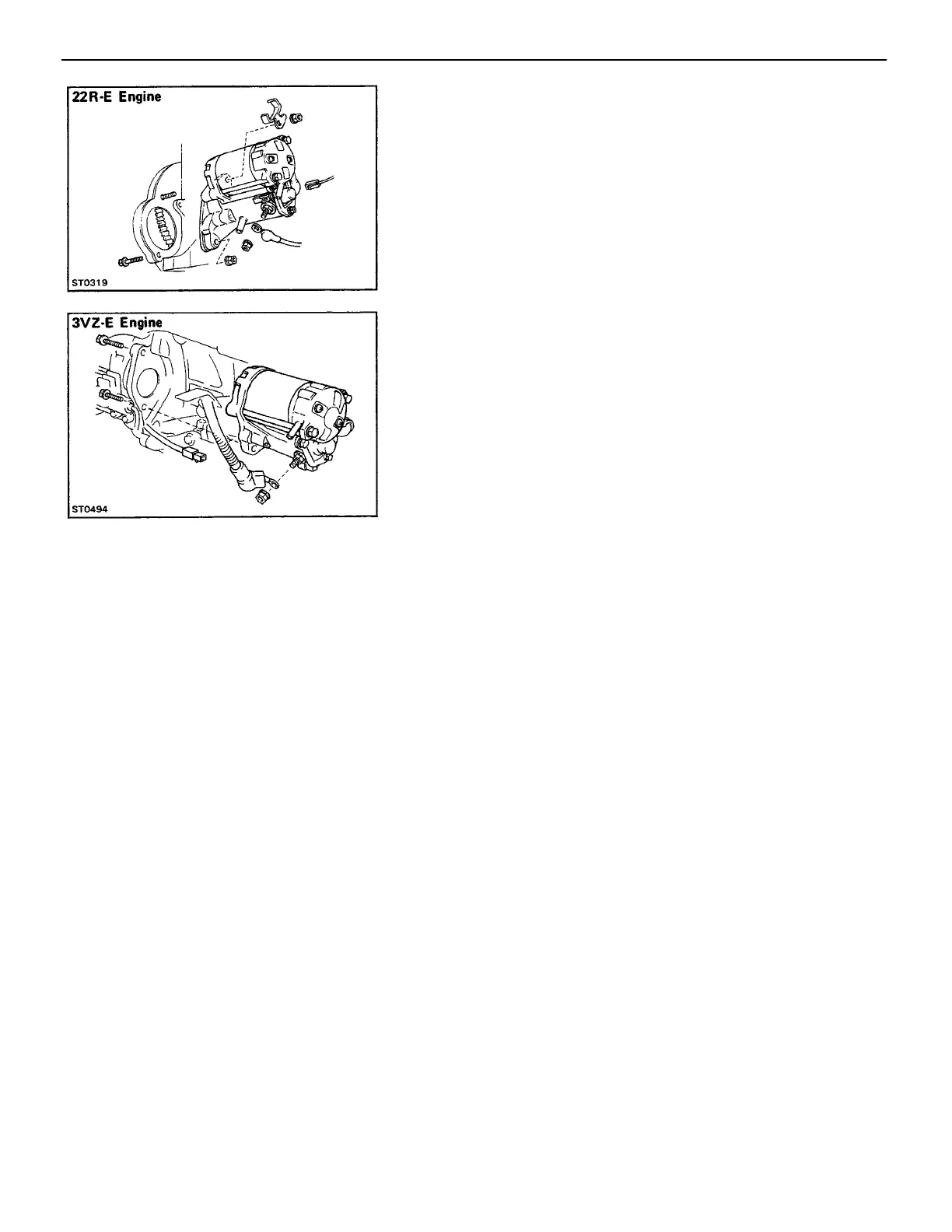

Place the starter motor in the flywheel bellhousing.
Install and torque the bolt and nut.
(3VZ–E Engine)
Place the starter motor in the flywheel bellhousing, and in–
stall and torque the starter mounting bolts.
Torque: 39 N–m (400 kgf–cm, 29 ft–lbf)
2. CONNECT TWO WIRES TO STARTER
Connect the connector to the terminal on the magnetic
switch. Connect the cable from the battery to the termi–
nal on the switch, and install the nut.
3. CONNECT CABLE TO NEGATIVE TERMINAL OF BATTERY
Check that the engine starts.
