Toyota 22R-E - Replace Crankshaft Rear Oil Seal; If Rear Oil Seal Retainer Is Removed from Cylinder Block; If Rear Oil Seal Retainer Is Installed to Cylinder Block

B. If rear oil seal retainer is installed to cylinder block:
(a) Using a knife, cut off the oil seal lip.
(b) Using a screwdriver, pry out the oil seal.
NOTICE: Be careful not to damage the crankshaft. Tape
the screwdriver tip.
(b) Using SST and a hammer, tap in a new oil seal until its
surface is flush with the rear oil seal retainer edge.
SST 09223–56010
(c) Apply MP grease to the oil seal lip.

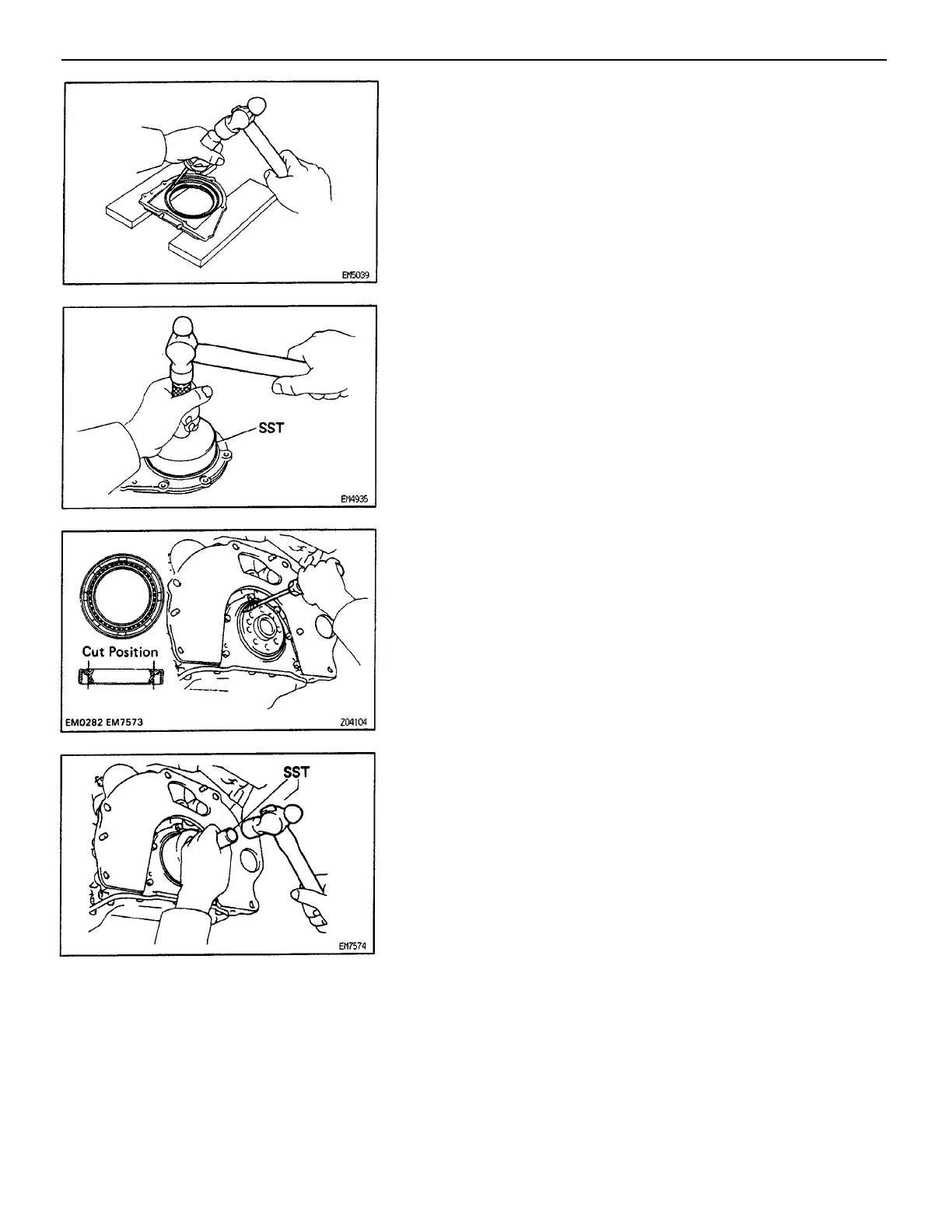

2. REPLACE CRANKSHAFT REAR OIL SEAL
A. If rear oil seal retainer is removed from cylinder
block:
(a) Using a screwdriver and hammer, tap out the oil seal.
(c) Apply MP grease to a new oil seal lip.
(d) Using SST and a hammer, tap in the oil seal until its
surface is flush with the rear oil seal retainer edge.
SST 09223–56410
–ENGINE ENGINE MECHANICAL
EG2–115
