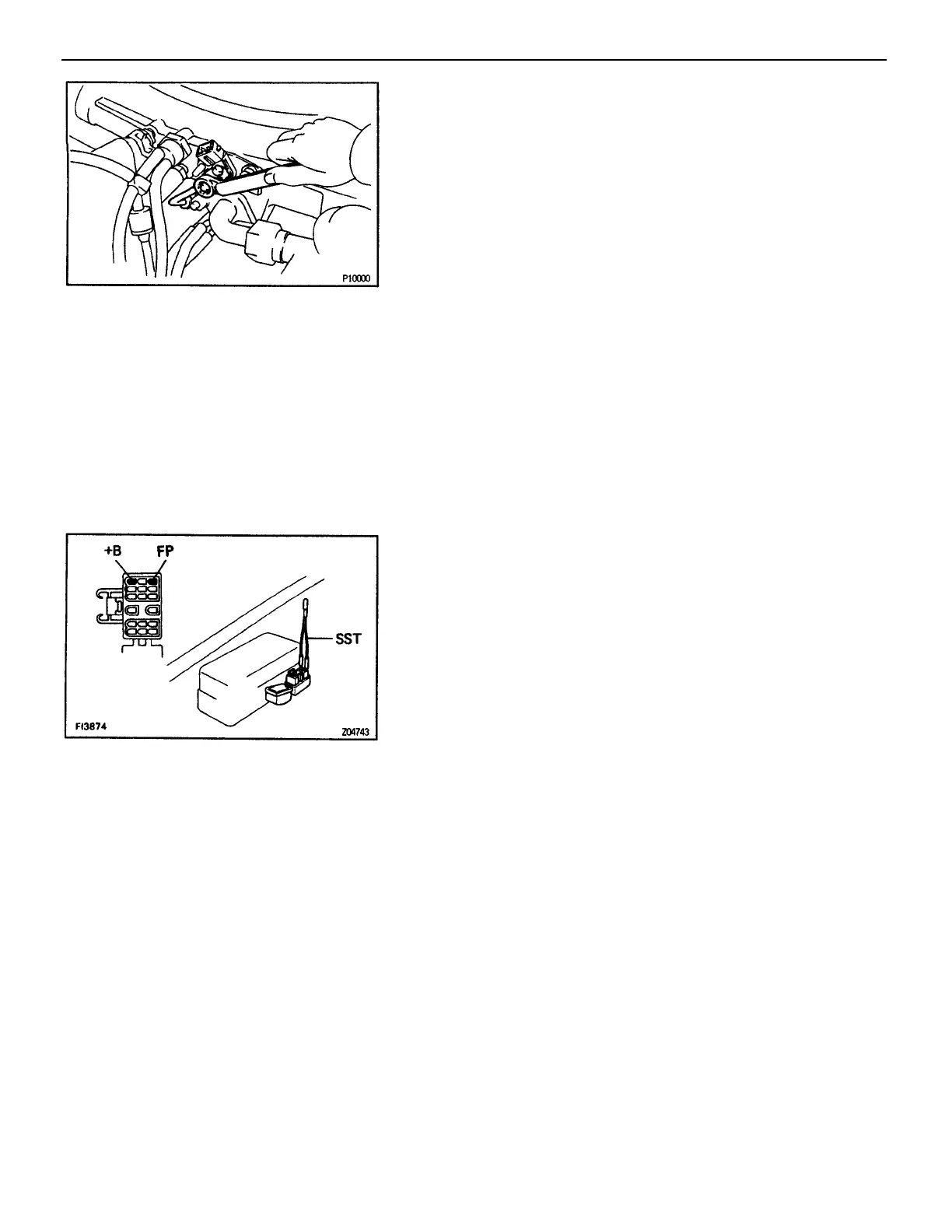

5. CHECK FOR FUEL LEAKAGE
(a) With the ignition switch ON, use SST to connect
terminals FP and +B of the DLC1.
SST 09843–18020
(b) Check for fuel leakage.
(c) Remove SST from the DLC1.
2. INSTALL COLD START INJECTOR TUBE
Using new gaskets, connect the cold start injector
tube with the union bolts.
Torque: 15 N–m (150 kgf–cm, 11 ft–lbf)
3. CONNECT COLD START INJECTOR CONNECTOR
4. CONNECT CABLE TO NEGATIVE TERMINAL OF
BATTERY
–ENGINE MFI SYSTEM
EG2–211

Toyota 22R-E Specifications

General

Displacement	2.4 L (2366 cc)
Fuel System	Electronic Fuel Injection (EFI)
Compression Ratio	9.0:1
Torque	142 lb⋅ft (193 N⋅m) at 3, 400 rpm
Block Material	Cast Iron
Head Material	Aluminum
Engine Type	Inline-4
Bore x Stroke	92 mm x 89 mm (3.62 in x 3.50 in)
Valvetrain	SOHC, 2 valves per cylinder
Power Output	112 hp (84 kW) at 4, 600 rpm
