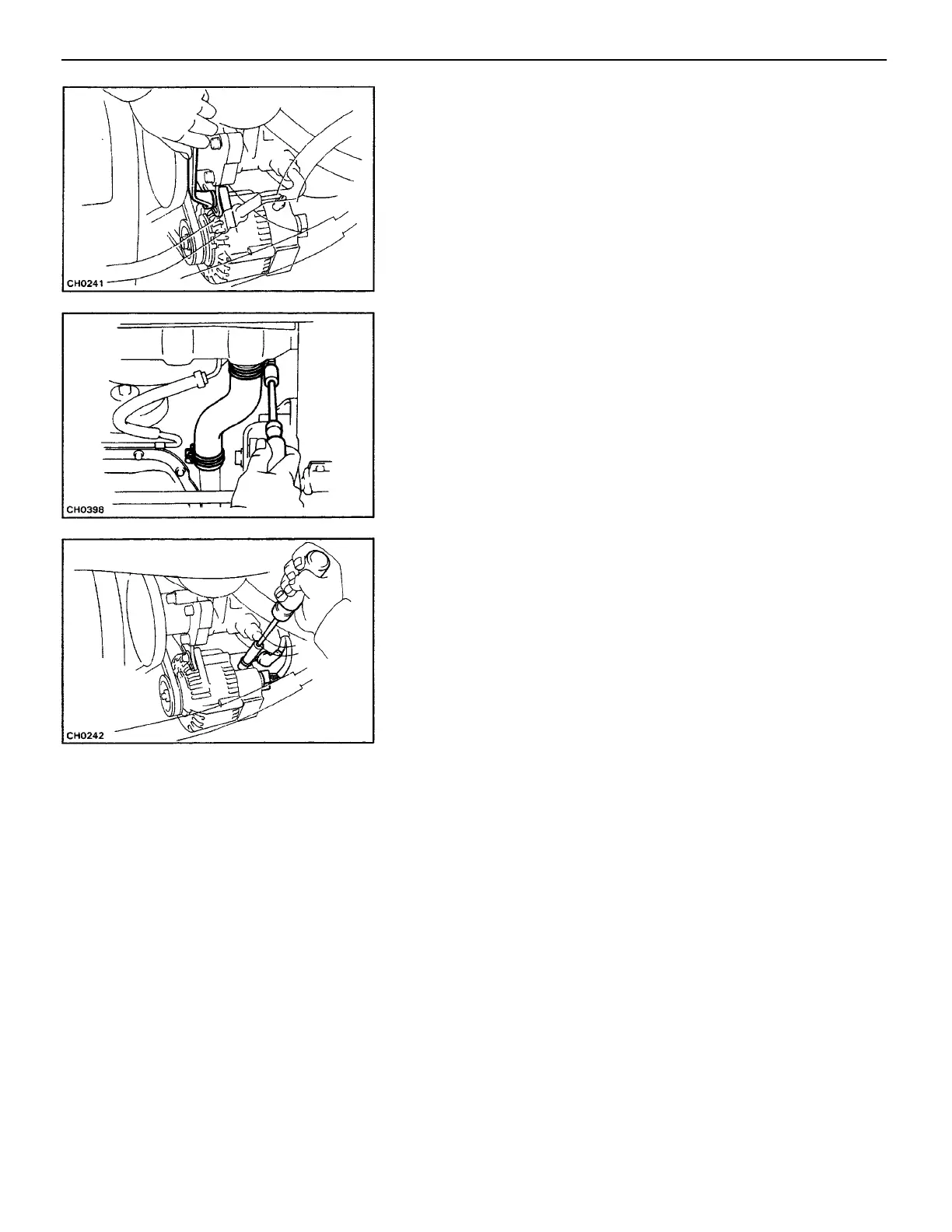

INSTALLATION OF GENERATOR (22R–E)
1. INSTALL GENERATOR
Mount the generator on the bracket with the pivot and ad–
justing bolt.
2. INSTALL AND ADJUST DRIVE BELT
(See page MA–6)
5. FILL WITH COOLANT
Close the radiator drain cock and fill with coolant.
6. CONNECT NEGATIVE CABLE TO BATTERY
7. PERFORM ON–VEHICLE INSPECTION
(See page CH–2)
3. INSTALL WATER INLET HOSE
(a) Install the water inlet hose.
(b) Install the engine under cover.
(c) (with A/C)
Install the No.2 fan shroud.
4. CONNECT WIRING TO GENERATOR
(a) Connect the wire to the generator and install the nut.
(b) Connect the connector to the generator.
–CHARGING SYSTEM Generator
