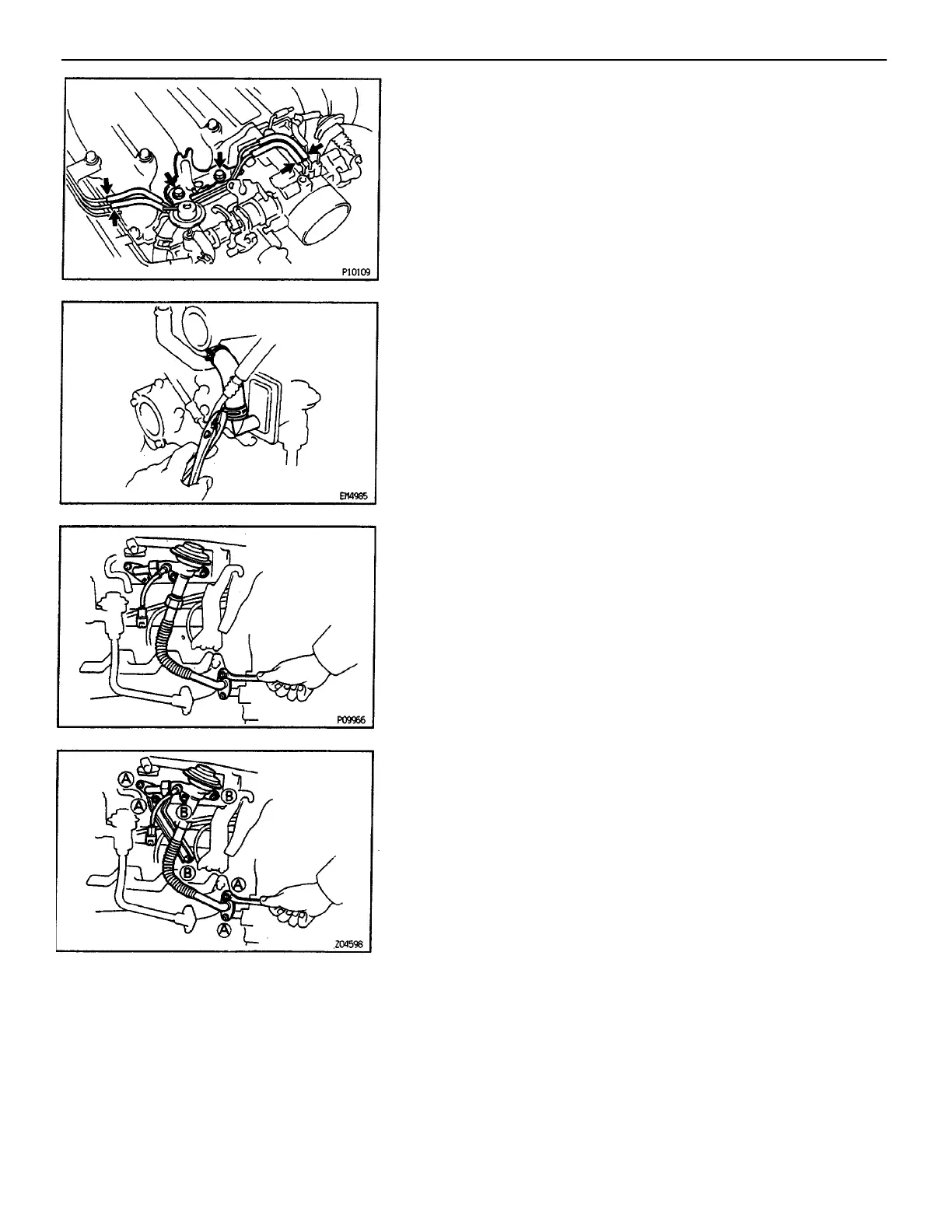

(j) Connect the EGR hoses to the air pipe and EGR
vacuum modulator.
(k) (California and C & C)
Connect the EGR gas temp. sensor connector.
(l) Connect the vacuum hose to the gas filter.
(f) Position two new gaskets to the intake chamber and
RH exhaust manifold.
(g) Install the EGR valve with the pipes to the intake
chamber and RH exhaust manifold.
(h) (C & C only)
Connect the two water by–pass hoses to the EGR
valve.
(i) Install the air intake chamber stay and throttle cable
bracket. Install and torque the six nuts and two bolts.
Torque:
(A) 29 N–m (300 kgf–cm, 22 ft–lbf)
(B) 18 N–m (185 kgf–cm, 13 ft–lbf)
(c) Install the accelerator cable bracket with the two
bolts.
(d) Connect the four vacuum hoses to the air pipes.
(e) Connect the No. 1 air hose to the reed valve.
–ENGINE MFI SYSTEM
EG2–217
