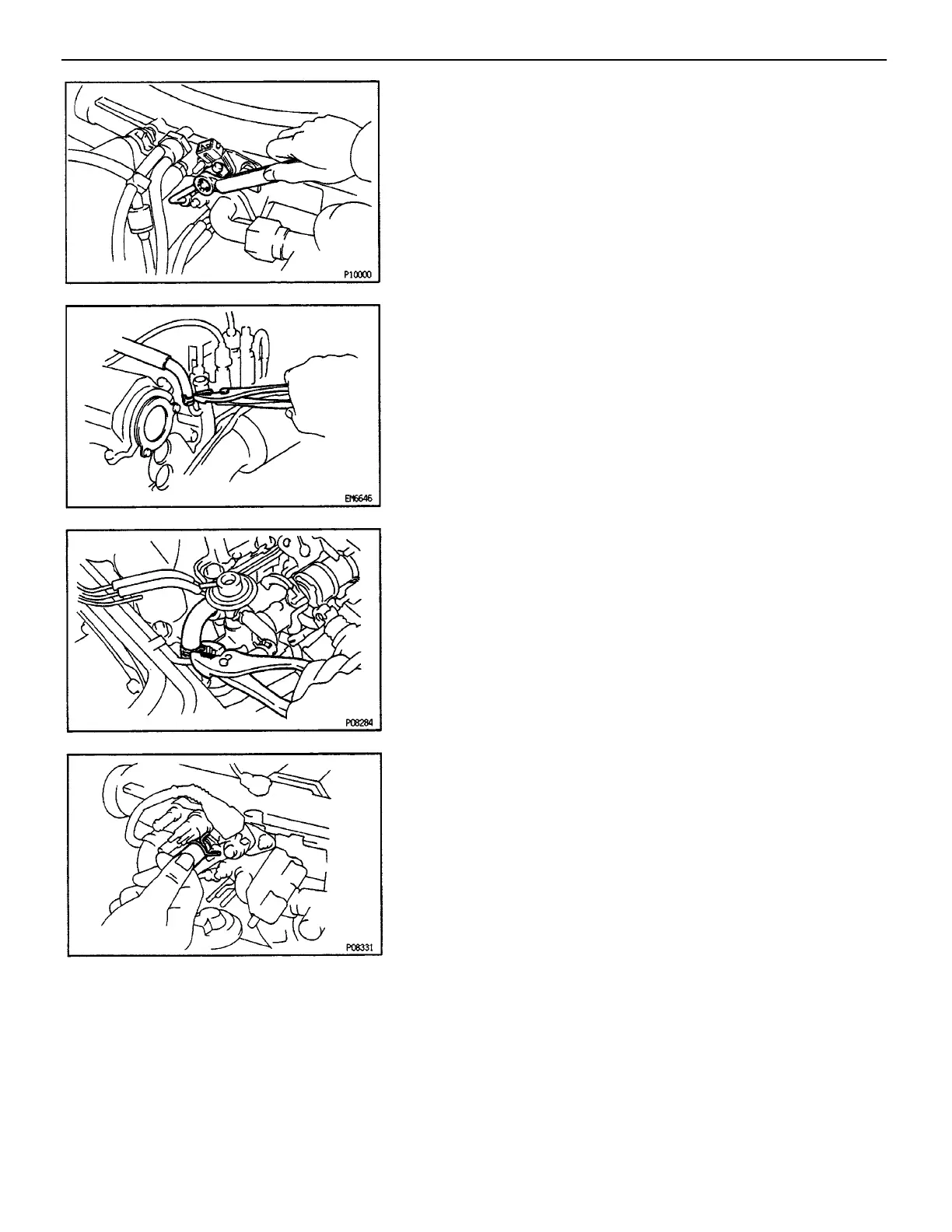

(m) Connect the cold start injector tube with new a gasket
and the union bolt.
Torque: 15 N–m (150 kgf–cm, 13 ft–lbf)
(n) Connect the cold start injector connector.
(r) Connect the canister vacuum hose to the throttle
body.
(s) Connect the throttle position sensor connector.
(o) install the No.5 Water by–pass hose to the water by
–pass pipe.
(p) Connect the No.4 water by–pass hose to the union of
the intake manifold.
(q) Connect the PCV hose to the union.
–ENGINE MFI SYSTEM
EG2–218
