Toyota 22R-E User Manual

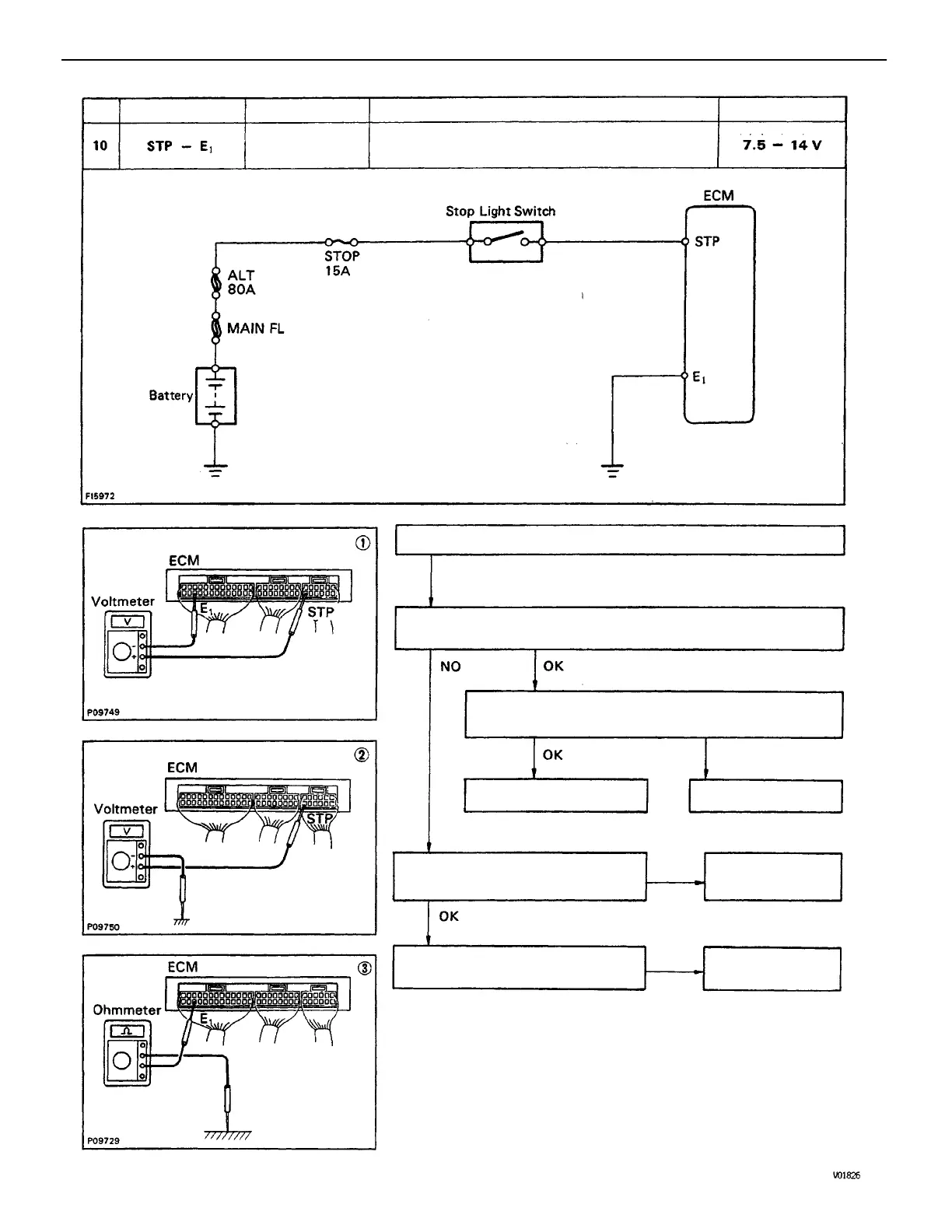

(2) Check that there is voltage between ECM terminal STP an body
ground when the brake pedal is depressed.
(3) Check wiring between ECM terminal E1 and body
ground.
(1) There is no voltage between ECM terminals STP and E1.
Check STOP fuse (15A) and stop
light switch.
Check wiring between ECM
terminal STP and battery.
Repair or replace.
Try another ECM.
Stop tight switch ON
Repair or replace.
Repair or replace.
STD Voltage
No voltage
Terminals
Condition
Trouble
BAD
BAD
BAD
No.
–ENGINE MFI SYSTEM
EG1–155

Toyota 22R-E Specifications

General

Displacement	2.4 L (2366 cc)
Fuel System	Electronic Fuel Injection (EFI)
Compression Ratio	9.0:1
Torque	142 lb⋅ft (193 N⋅m) at 3, 400 rpm
Block Material	Cast Iron
Head Material	Aluminum
Engine Type	Inline-4
Bore x Stroke	92 mm x 89 mm (3.62 in x 3.50 in)
Valvetrain	SOHC, 2 valves per cylinder
Power Output	112 hp (84 kW) at 4, 600 rpm
