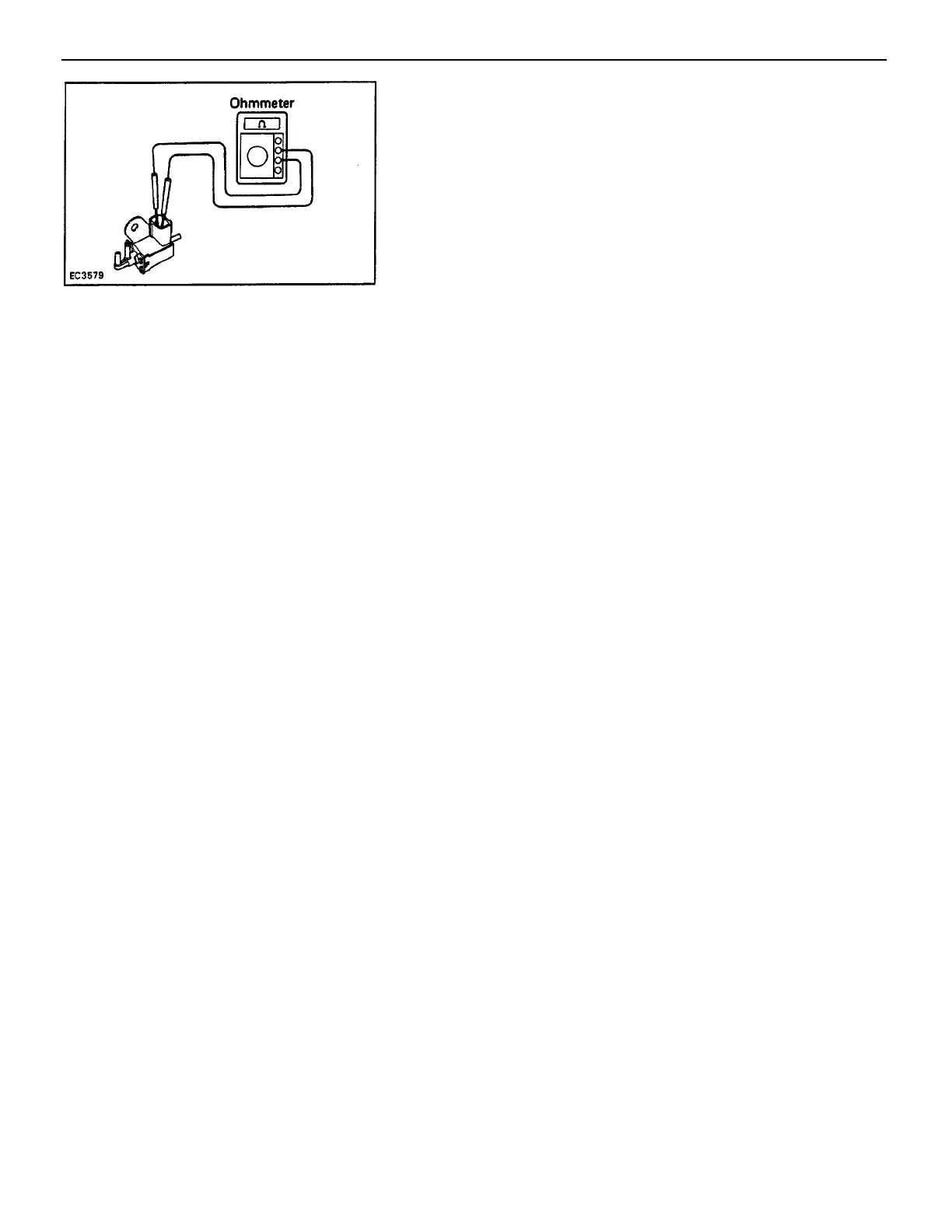

3. CHECK FOR OPEN CIRCUIT
Using an ohmmeter
, measure the resistance between
both terminals as illustrated.
Specified resistance: 30–50
Ω
at 20
°
C (68
°
F)
If resistance is not within specification, replace the
VSV
.
–
ENGINE
M
FI SYSTEM
EG1–211
