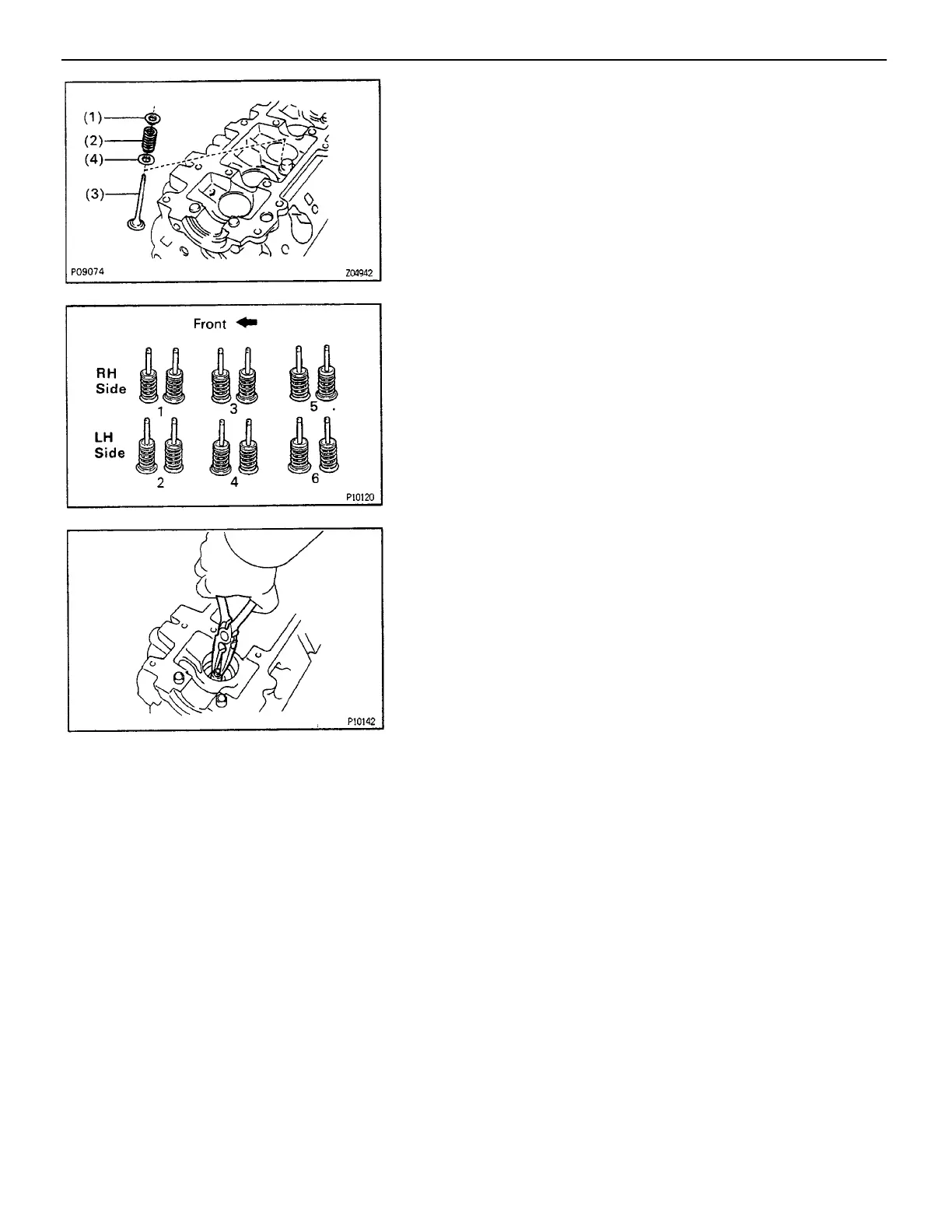

(b) Remove the following parts:
(1) Spring retainer
(2) Valve spring
(3) Valve
(4) Spring seat
HINT: Arrange the valves, valve springs, spring seats
and spring retainers incorrect order.
(c) Using needle–nose pliers, remove the oil seal.
–ENGINE ENGINE MECHANICAL
EG2–62
