3. Do not permit parts to receive a severe impact during
removal or installation. Handle all MFI parts carefully,
especially the ECM.
4. Take great care during troubleshooting as there are
numerous transistor circuits and even slight terminal
contact can cause further troubles.
5. Do not open the ECM cover.
6. When inspecting during rainy weather, take care to
prevent entry of water. Also, when washing the
engine compartment, prevent water from getting on
the MFI parts and wiring connectors.
7. Parts should be replaced as an assembly.

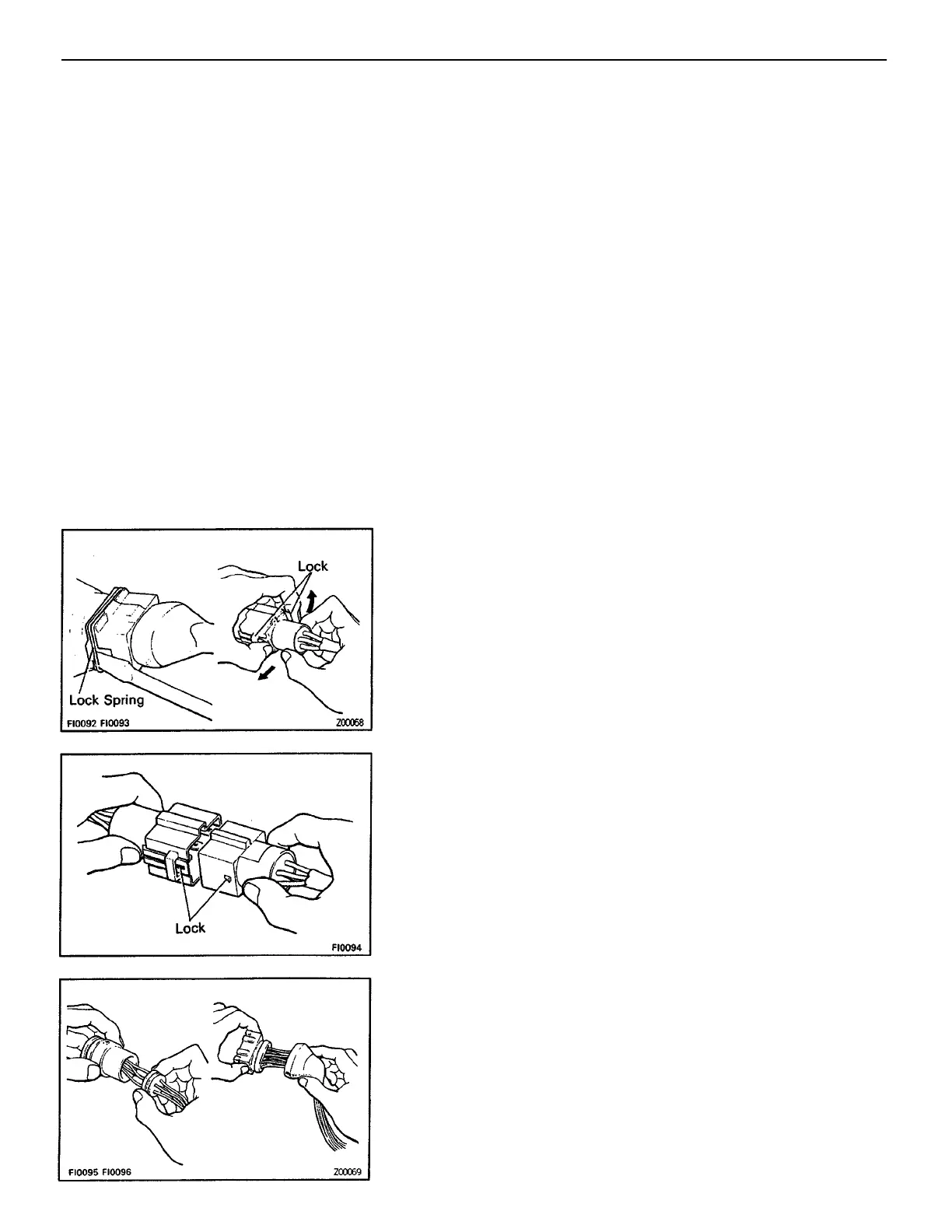

(b) Fully insert the connector and check that it is locked:
8. Care is required when pulling out the inserting wiring
connectors.
(a) To pull the connector out, release the lock and pull on
the connector.
9. When inspecting a connector with a volt/ohmmeter.
(a) Carefully take out the water–proofing rubber if it is a
water–proof type connector.
–ENGINE MFI SYSTEM
EG2–167
