WATER PUMP REMOVAL

1. REMOVE TIMING BELT

(See page EG2–32)

2. REMOVE THERMOSTAT

3. DISCONNECT NO. 2 OIL COOLER HOSE FROM

WATER PUMP

4. REMOVE WATER PUMP

Remove the seven bolts and water– pump.

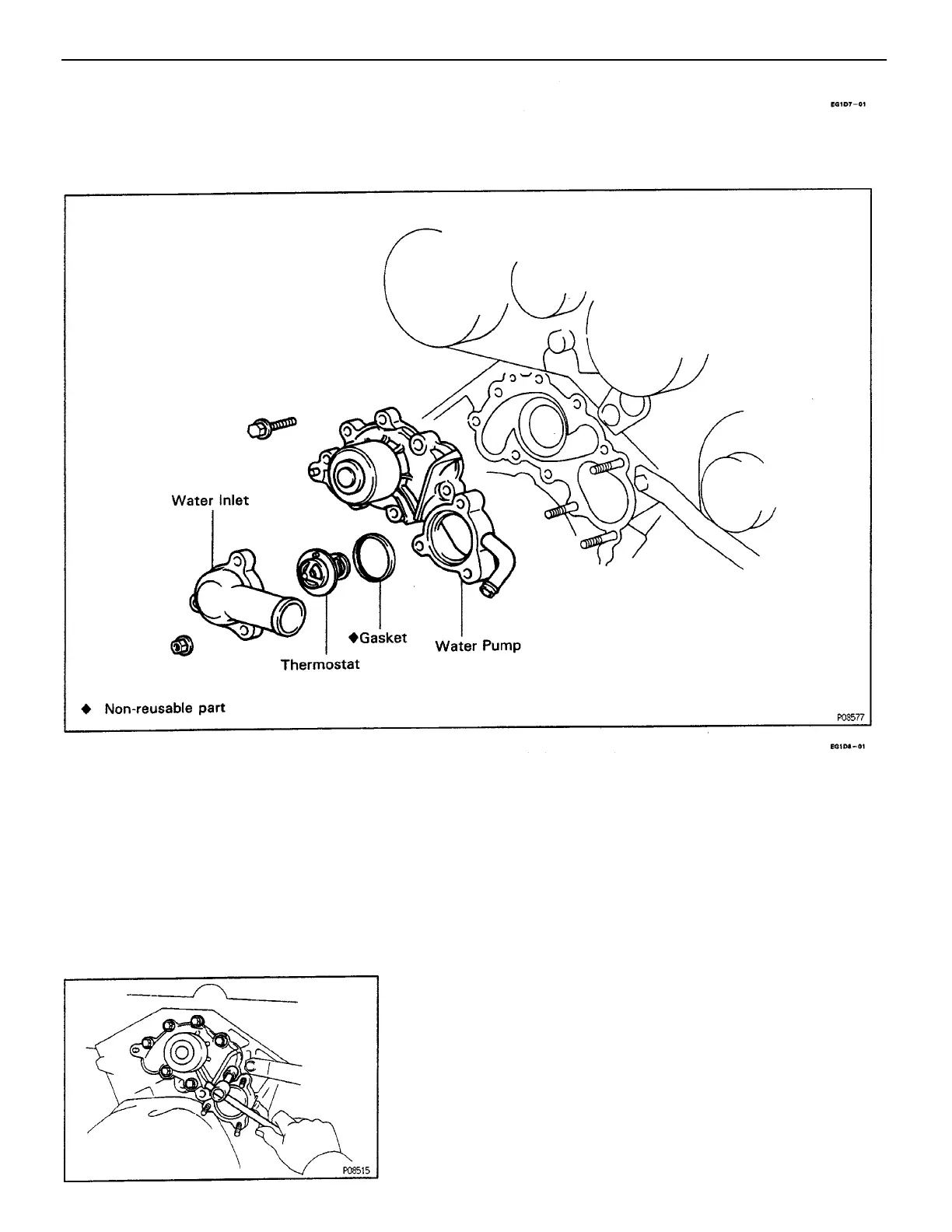

WATER PUMP

COMPONENTS

–ENGINE COOLING SYSTEM

EG2–265
