5. REMOVE CRANKSHAFT TIMING PULLEY
(See step 21 on page EG2–36)
6. REMOVE OIL PAN
(a) Remove the seventeen bolts and two nuts.
(b) Using SST and a brass bar, separate the oil pan from
the baffle plate.
SST 09032–00100
HINT: When removing the oil pan, be careful not to
damage the oil pan flange.
OIL PUMP REMOVAL
1. REMOVE ENGINE UNDER COVER
2. (4WD)
REMOVE FRONT DIFFERENTIAL
(See page SA–57)
3. DRAIN ENGINE OIL
4. REMOVE TIMING BELT
(See page EG2–32)
OIL PUMP

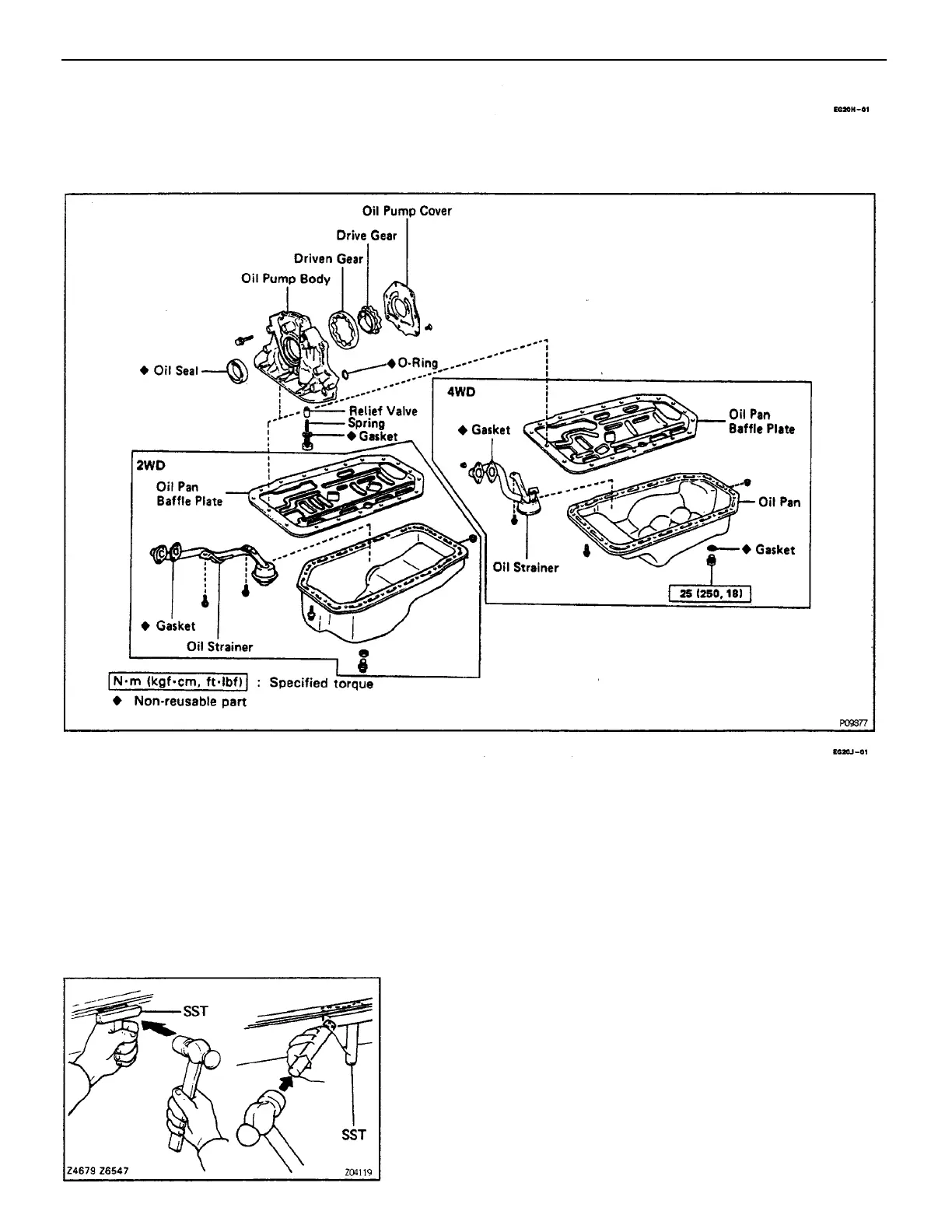

COMPONENTS
–ENGINE LUBRICATION SYSTEM
EG2–280
