9. Installing user software in a Windows 95/98 environment

Xerox Phaser 790

9–10

5. Double-click the ECP Printer Port (LPT1) option.

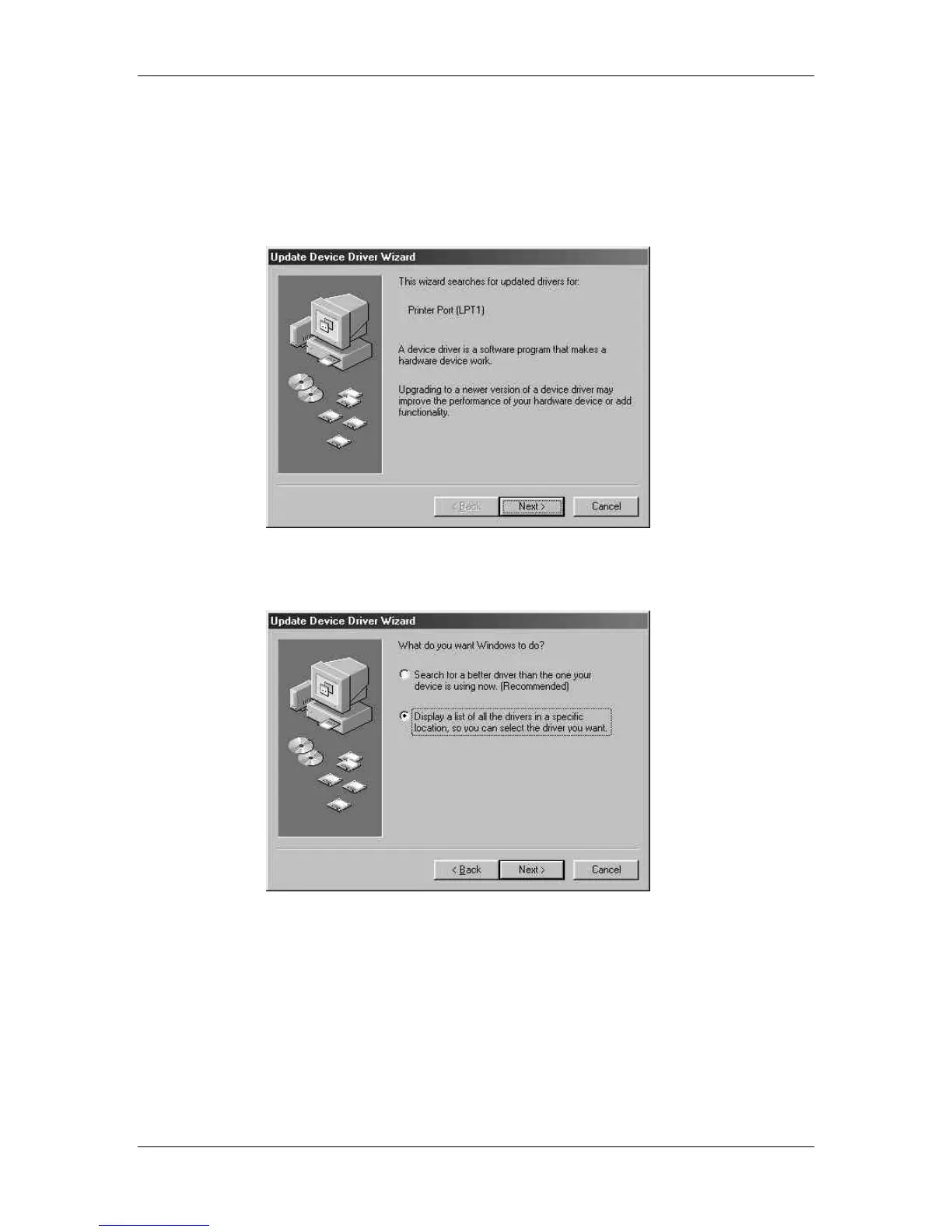

6. In the properties dialog box, select the Driver tab and then the

Update Driver option. The Update Device Driver Wizard is

displayed.

7. Select Next.

8. Select the Display a list of all the drivers in a specific

location, so you can select the driver you want radio button

and then select Next.
