10. Installing user software in a Windows 2000 environment

Xerox Phaser 790

10–6

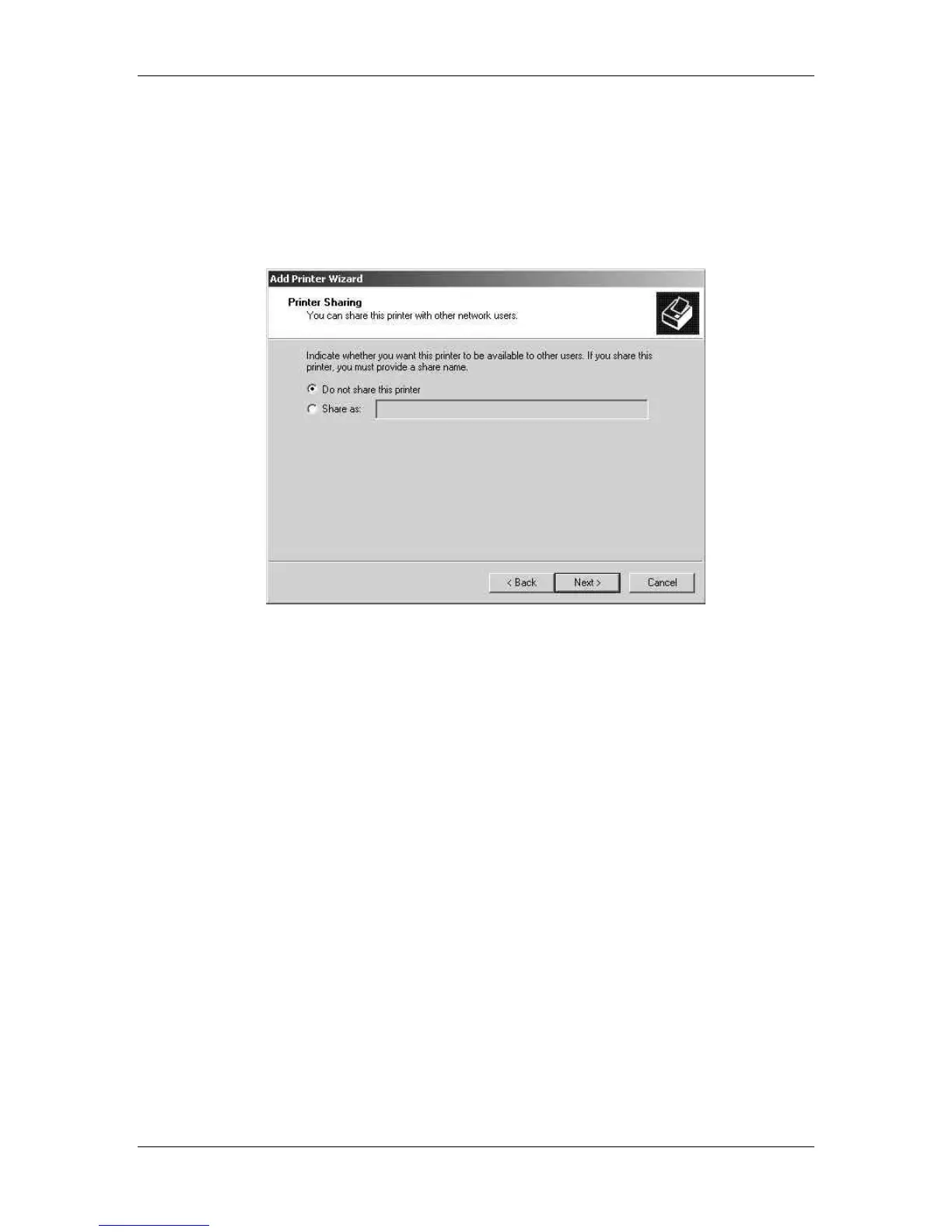

13. Indicate whether you want the printer installed as a shared

printer.

If you select Share as, you must also enter a Share Name for the

printer (or leave the default name) and make selections from the

list of operating systems used by client workstations.

Select Next.
