10. Installing user software in a Windows 2000 environment

Xerox Phaser 790

10–7

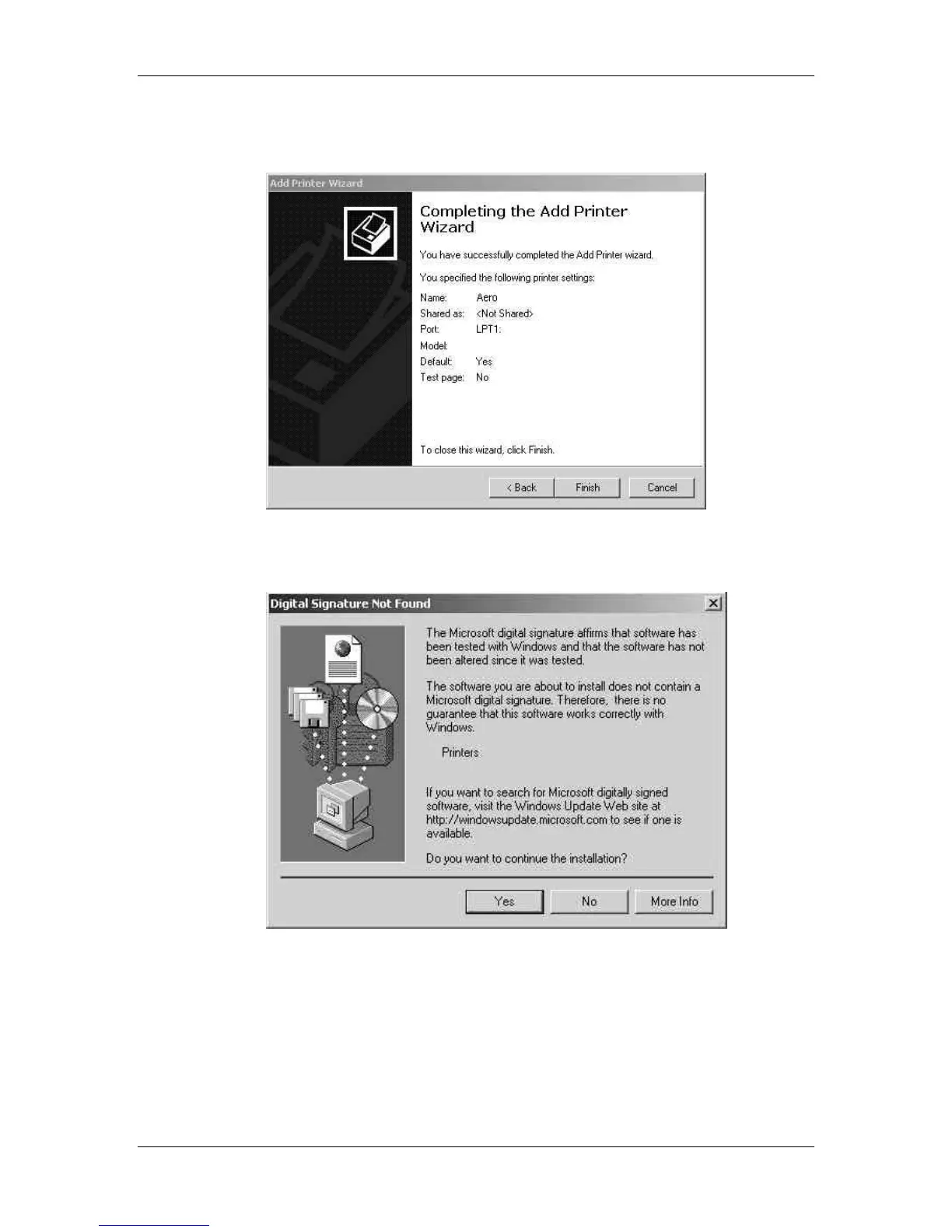

14. Select the No button to printing a test page and select Next.

15. Verify the printer settings specified, and select Finish.

The Digital Signature Not Found window indicates that the printer

driver for Windows 2000 does not have a Microsoft digital

signature. However, printing is processed correctly.
