11. Installing user software in a Windows NT 4.0 environment

Xerox Phaser 790

11–16

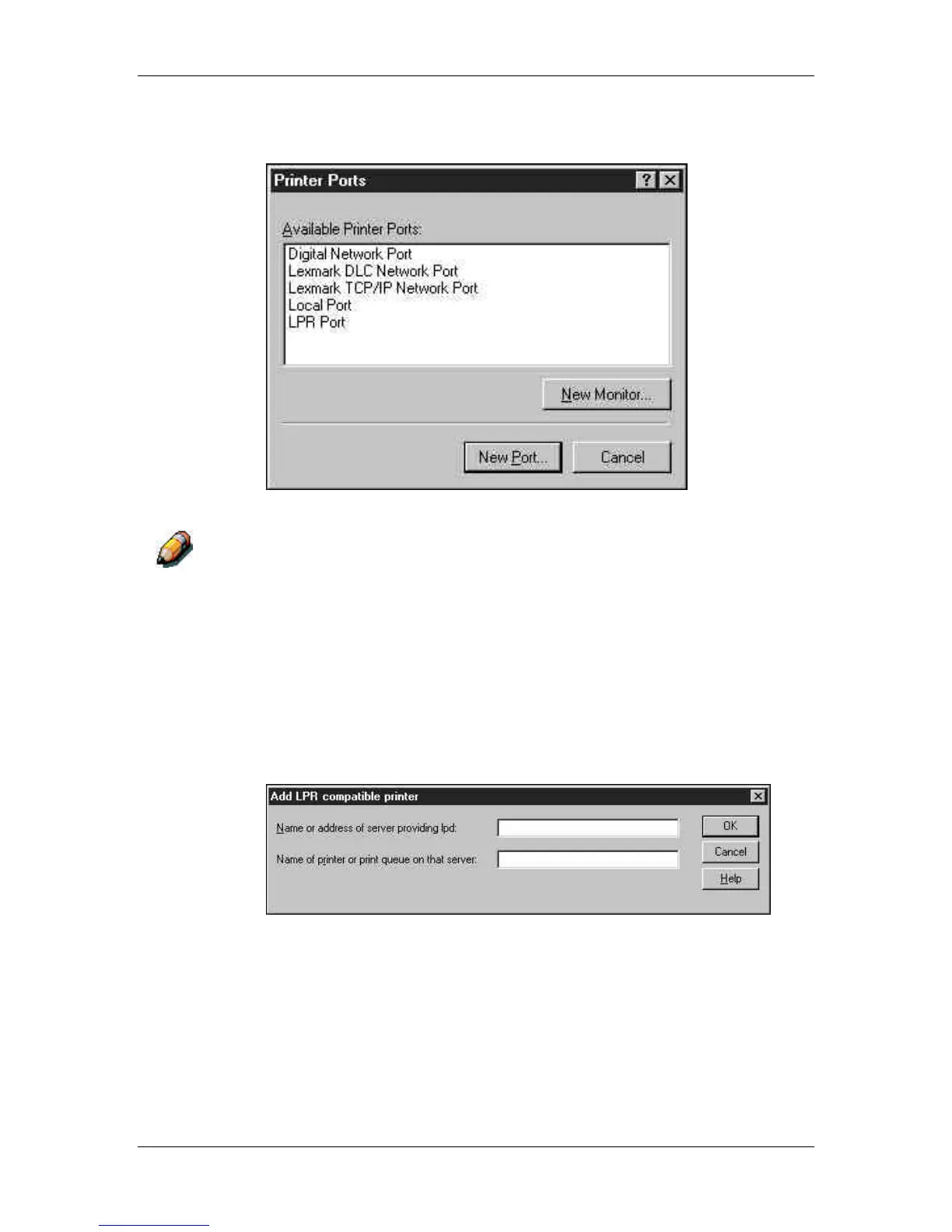

3. Ensure that you are connected to LPT1 and select the Add Port

option to display a list of available ports.

4. Select the LPR Port option and select the New Port button.

If the LPR port is not listed, install the TCP/IP network protocol and Microsoft

TCP/IP printing software. (Access the software through My Computer/

Control Panels/Network/Services. Select the Microsoft TCP/IP printing

icon.). Refer to your Windows NT documentation for details.

5. Perform one of the following:

• If your network uses IP addresses, enter the Ethernet

TCP/IP IP address of the Phaser 790 in the Add LPR

compatible printer dialog box.

• If your network uses Domain Name Services (DNS), enter

the DNS name assigned to the printer.
