23. Problem Solving Clearing Area 1 jams

23-8 Xerox Phaser 790

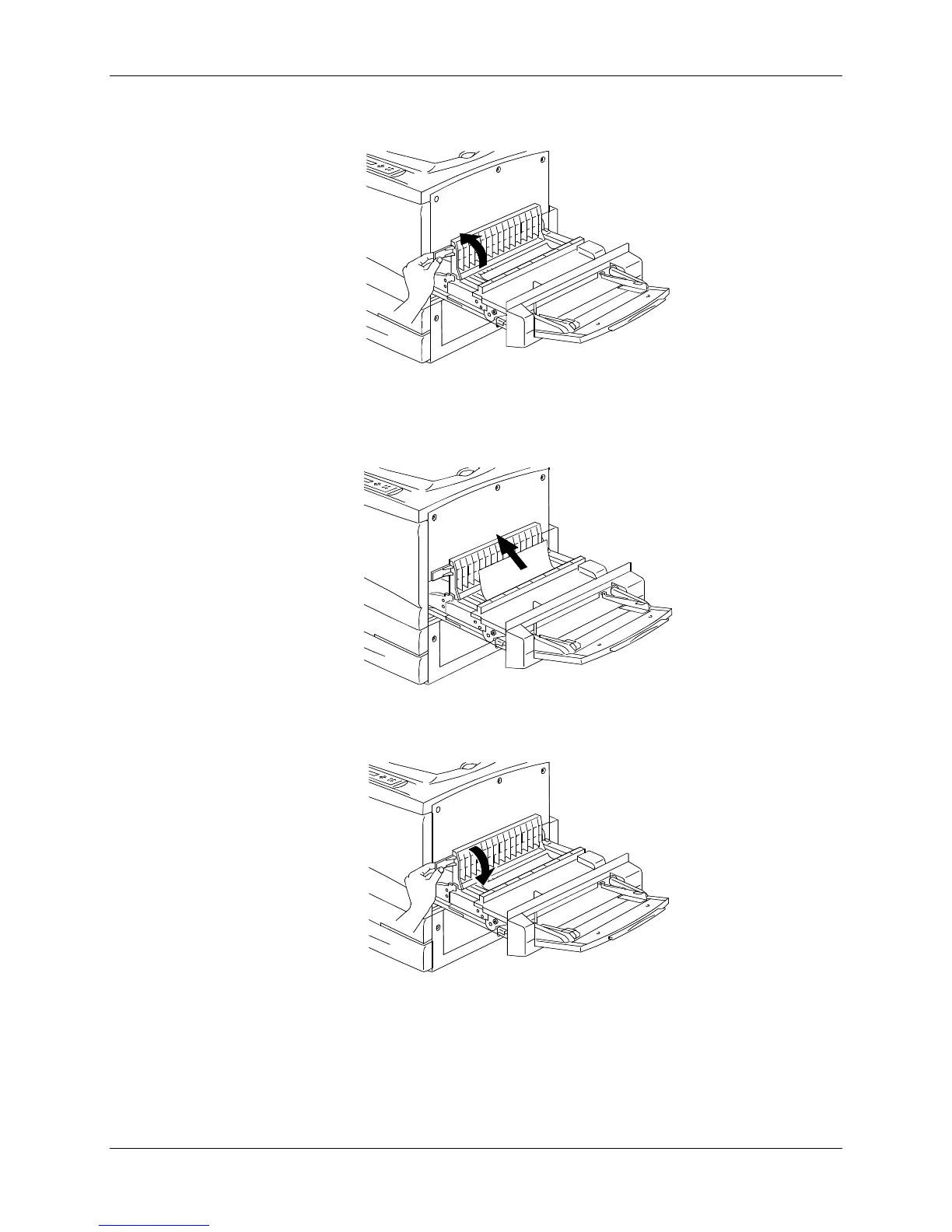

4. Lift the transport cover using the handle as shown.

0301091A-W O L

5. Remove any jammed or torn paper as shown below. Ensure that there

are no pieces of torn paper remaining in the transport.

0301092A-W O L

6. Close the transport cover.

030

093B

W O L
