Clearing Area 1 jams 23. Problem Solving

Xerox Phaser 790 23-9

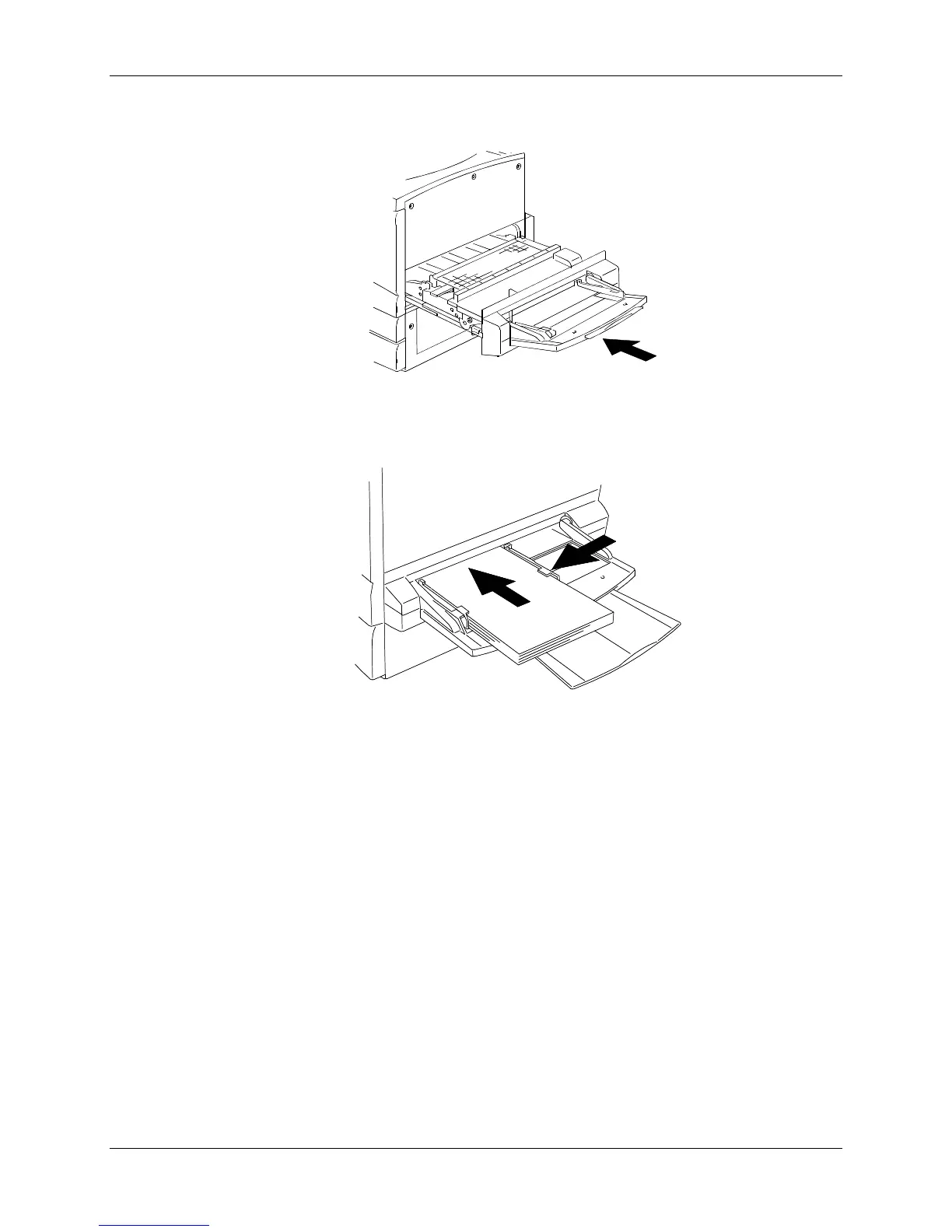

7. Close the Bypass Tray transport.

0301084A-W O L

8. Reload the Bypass Tray with the desired stock and ensure that the width

guide is adjusted to the size of the stock.

0301095A-W O L
