Replacing the Copy/Print Cartridge 24. Maintenance

Xerox Phaser 790 24-11

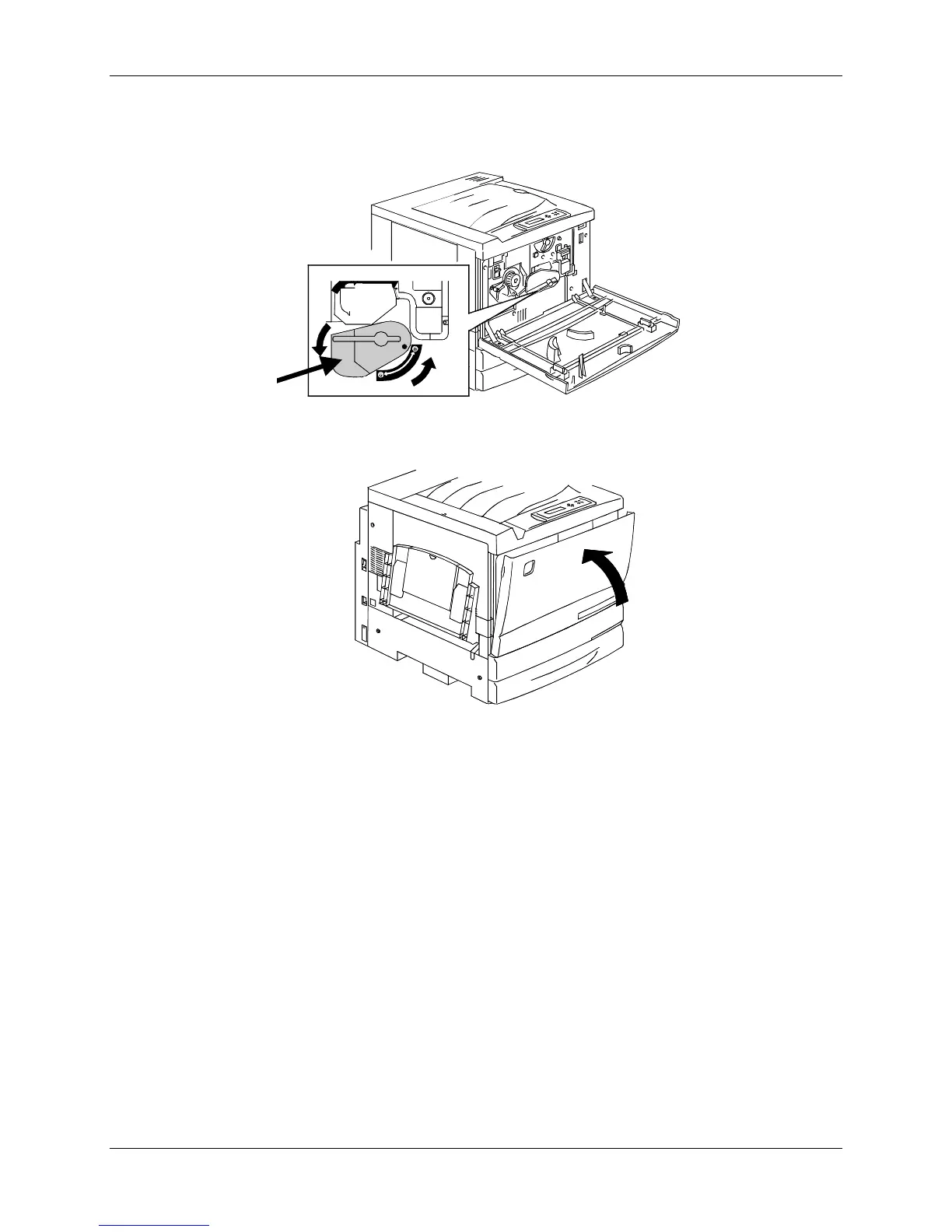

12. Rotate lever A in the direction of the arrow until the dot is aligned with

the Locked symbol.

301039b

13. Close the Front Cover and switch ON the power.

301077b
