1. Setting up the Phaser 790 Printer installation

1-32 Xerox Phaser 790

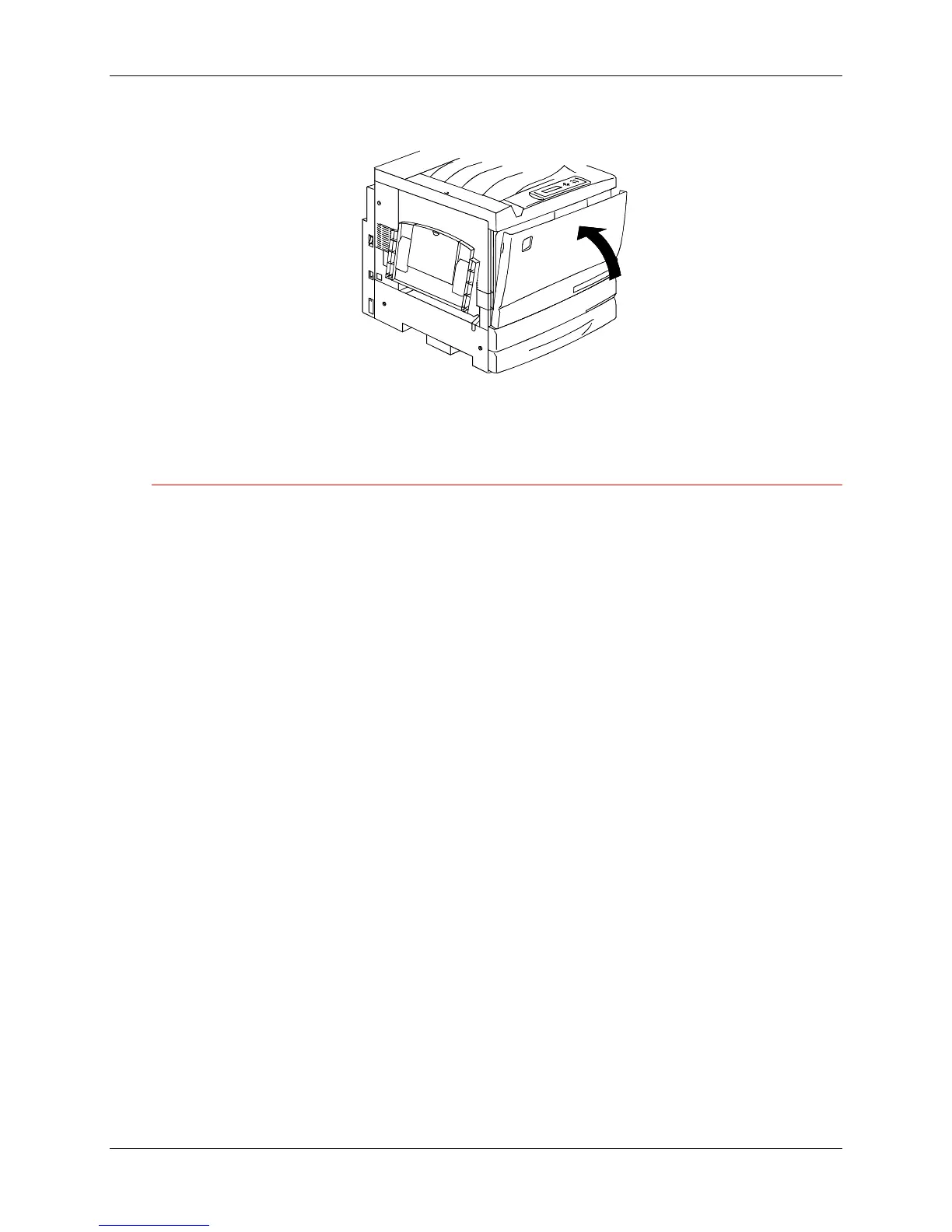

7. Close the Printer Front Cover.

301077b

The next step

If you have ordered the optional Duplex Tray, go to the Installing the Duplex

Tray procedure.

If you do not have a Duplex Tray, go to Loading the paper into the paper trays

procedure.
