Installing the Duplex Tray 1. Setting up the Phaser 790
Xerox Phaser 790 1-35

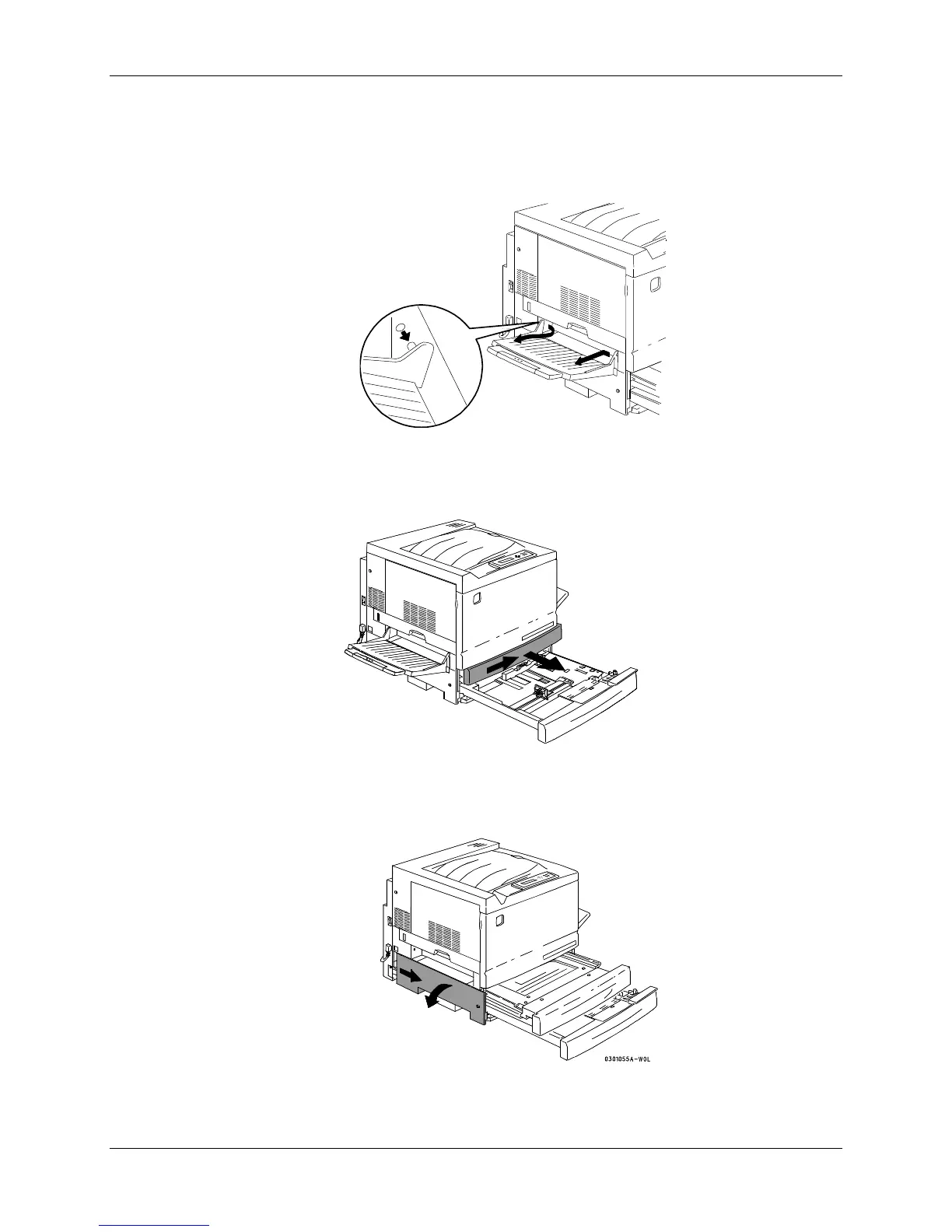

7. Install the Lower Inverter:
a. Gently squeeze the sides of the Output Tray toward each other in
order to remove the tray from the Printer.
301053B-WOL 0
b. Using the Screwdriver, remove the two screws from lower left-hand
cover of the Printer as shown below.
301051b
c. Remove the cover by shifting it to the right then pulling it away from
the Printer. Discard the cover.
