Xerox Phaser 790

1. Setting up the Phaser 790 Adding memory to the Printer
1-50 Xerox Phaser 790

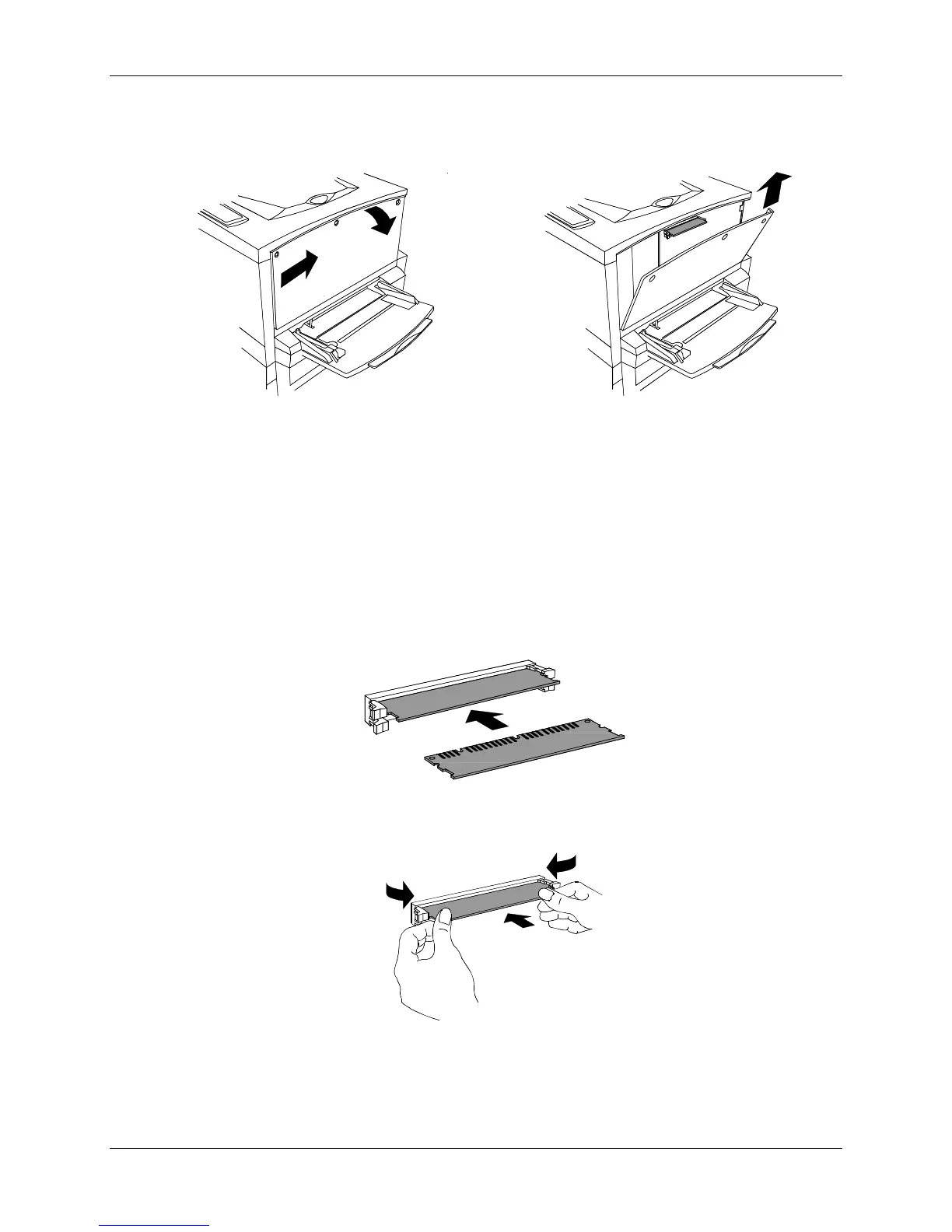

4. Slide the panel to the left and lift to remove. The memory card slots are
located behind the panel.
301210 301211a
• The upper slot contains the 64MB memory card, already installed.
• The lower slot in the Phaser 790 is empty. In the Phaser 790 DP
the lower slot contains an additional 64MB memory card.
5. If you are replacing the 64MB memory card with one or two memory
cards, go to step 6. If you are adding another memory card to the
existing 64MB memory, perform this step.
6. Remove the additional memory card from the anti-static bag.
301214a
a. Slide the card into the lower slot below the 64MB memory card.
b. Using your thumbs, press the card into the slot until it clicks.
0 3 0 1 0 63 A - W O L
301233a
c. Go to step 7.
