Adding memory to the Printer 1. Setting up the Phaser 790

Xerox Phaser 790 1-53

11. Reconnect the power cord to the rear of the Printer.

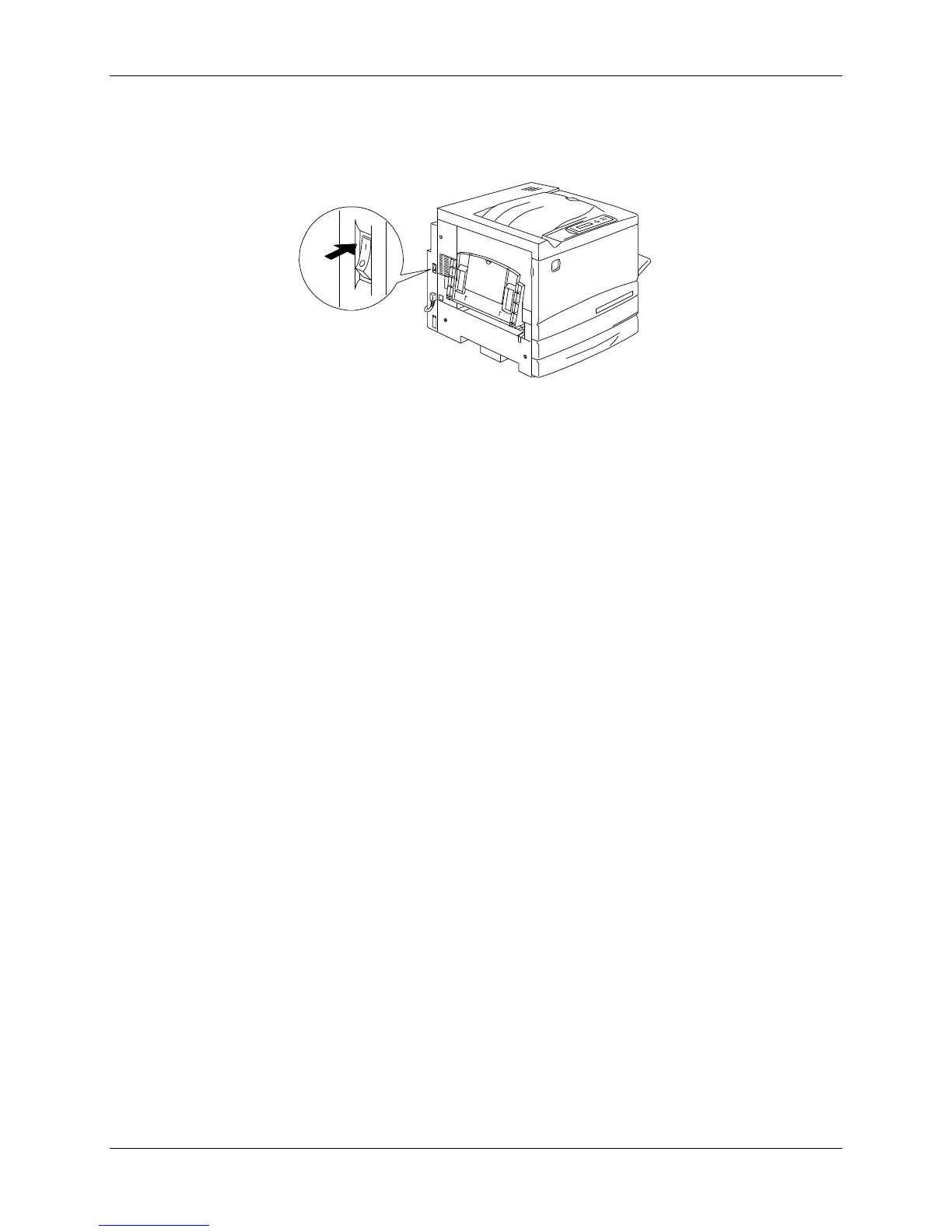

12. Switch ON the Printer power.

301072A-WOL

13. After a few moments, READY is displayed on the Control Panel Screen.
