3. Network Setup Token Ring Network Kit

3-2 Xerox Phaser 790

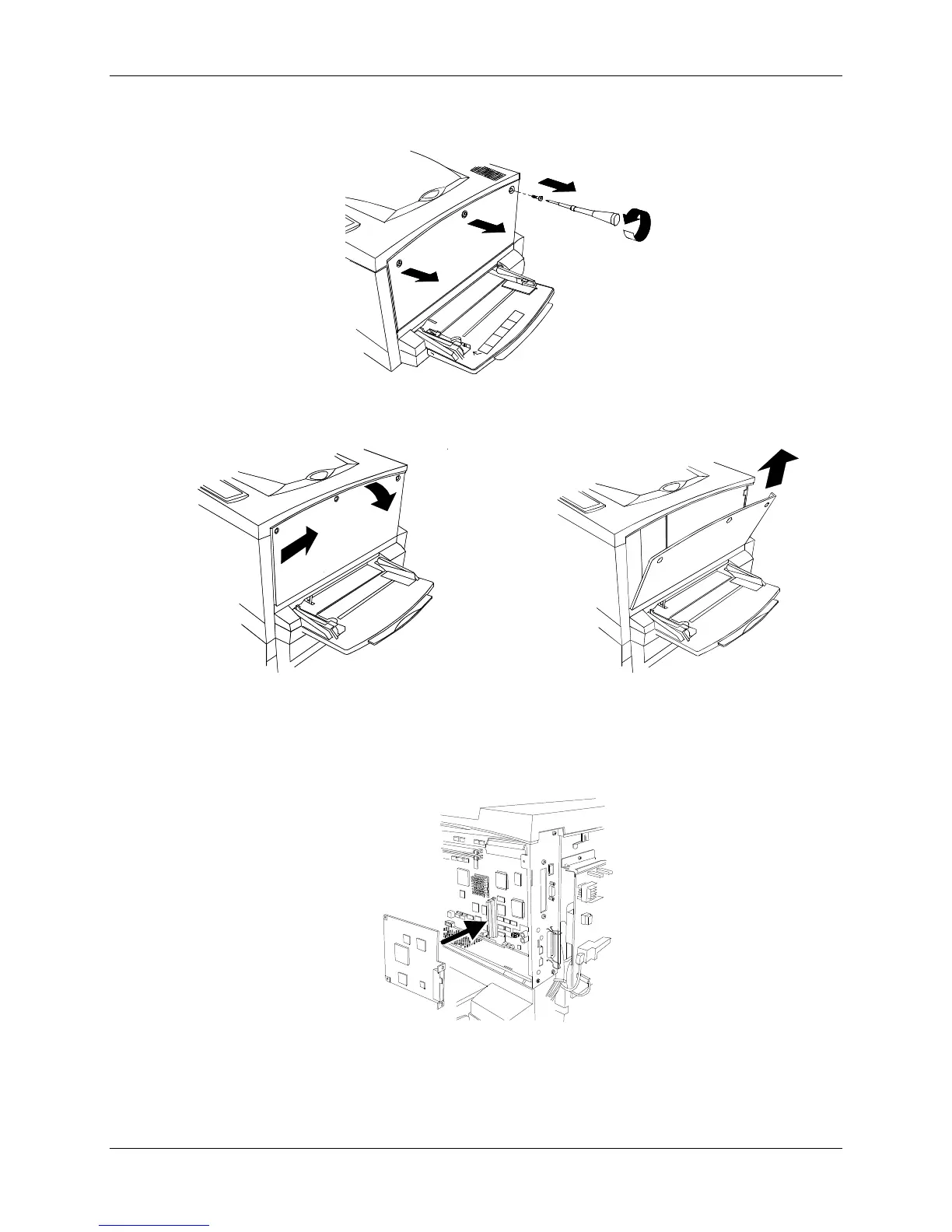

3. Remove the three screws from the right-hand side panel of the Printer.

301083

4. Slide the panel to the left and lift to remove.

301210 301217

5. Remove the Token Ring card from the anti-static bag.

6. Install the card as shown below. Ensure that the jacks are accessible

through the rear frame of the Printer.

301252
