Mounting the SH1R Shelf to a Rack

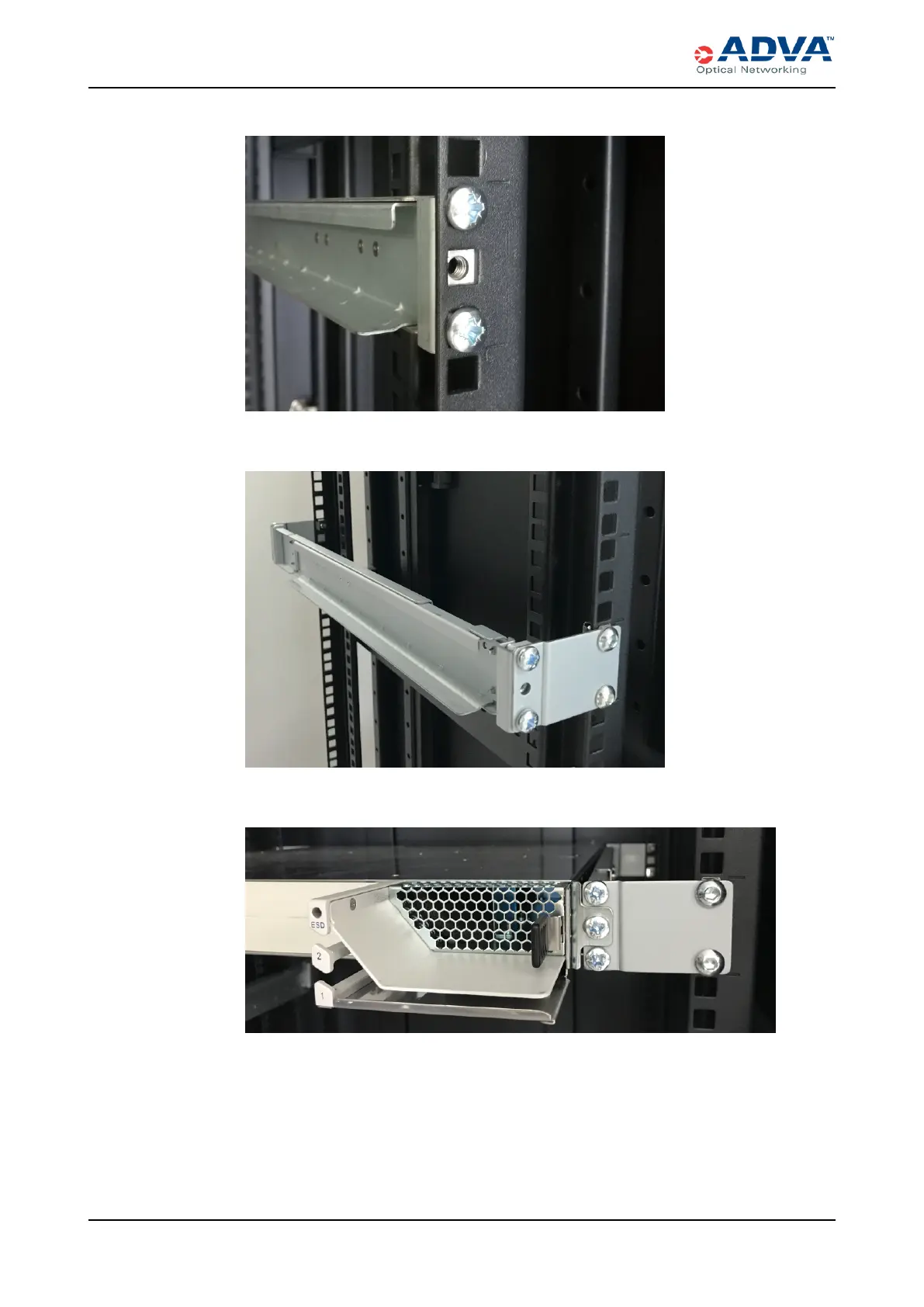

Figure 93: Guide Rail Rack Mounting — 19-inch Rack
Figure 94: Guide Rail Rack Mounting — 23-inch or ETSI Rack
Figure 95: SH1R Attached to Guide Rails
6. For a mid-mount, two-post rack installation:
a. Lift the shelf to the bay and position it in the rack so that the bracket holes on
each side are aligned with the rack mounting holes or the cage nuts.
b. Use a Pozidriv screwdriver and two M6x20screws to attach the left mounting
bracket to the rack.
291 FSP 3000R7 High-Density Subshelf Guide - R17.2 - Issue:B
