154 Rockwell Automation Publication 2198-UM004A-EN-P - October 2019
Chapter 7 Configure the Drive with KNX5100C Software

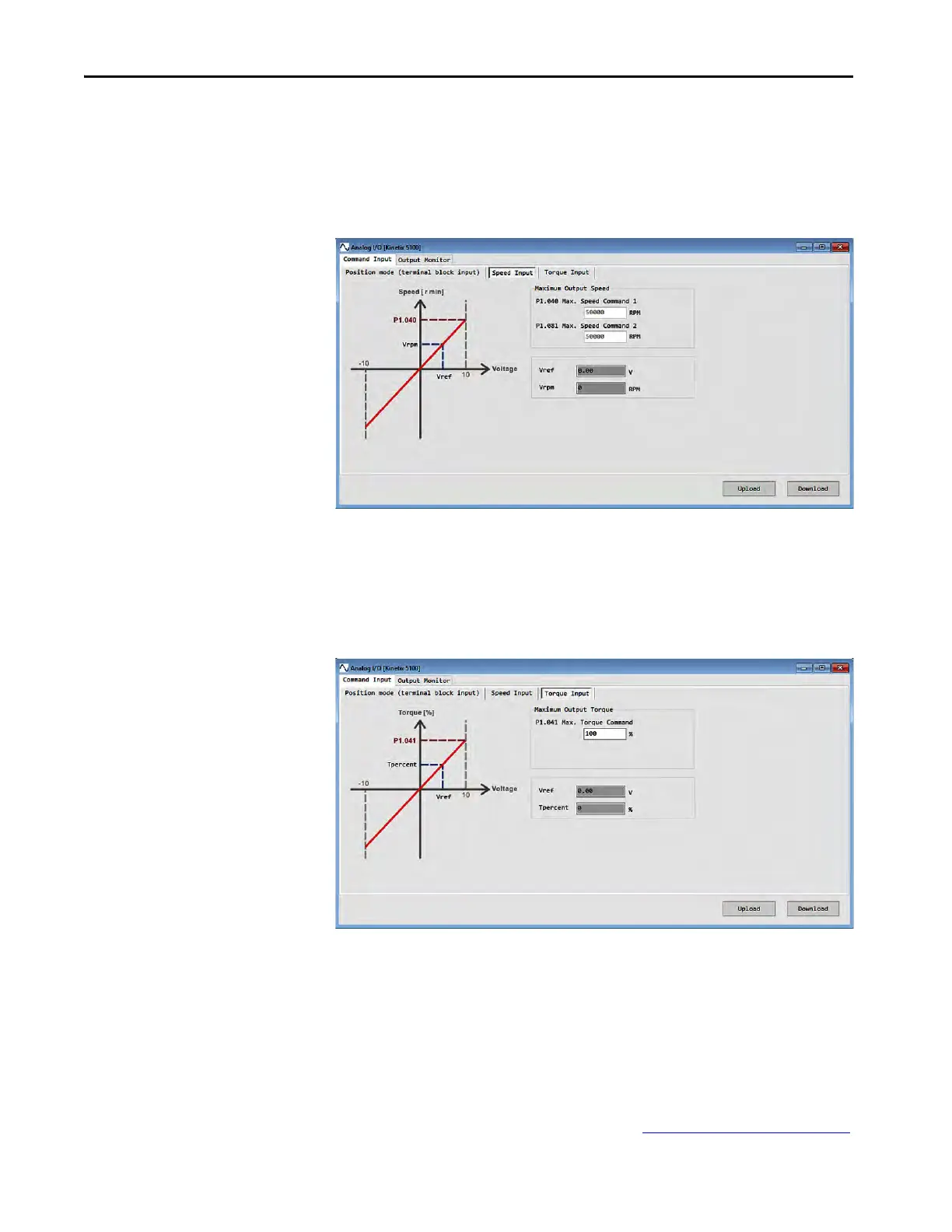

Speed Input Tab
On this tab, you can set the maximum output speed by using parameters ID147
(P1.040) and ID679 (P1.081).
Click Download to download any changed parameters to the servo drive.
Torque Input Tab
On this tab, you can change the maximum output torque command by using
parameter ID148 (P1.041).
Click Download to download any changed parameters to the servo drive.
Output Monitor Tab
On the Output Monitor tab, you can change the output monitor setting s for
each of the two analog channels for monitoring (MON1 and MON2) by
changing the values of parameters ID103 (P0.003), ID119 (P1.003), and ID120
(P1.004).
The Mon Calculator lets you calculate the corresponding voltage output for the
current motor speed. For more information, see Analog Monitoring
on page 244.
