Rockwell Automation Publication 2198-UM004A-EN-P - October 2019 281

Motion Control in PR Mode Chapter 11

Homing Setting

The Homing tab lets you configure the Homing mode, speed settings, and

Homing Definition parameters. See Homing

on page 256 for more information.

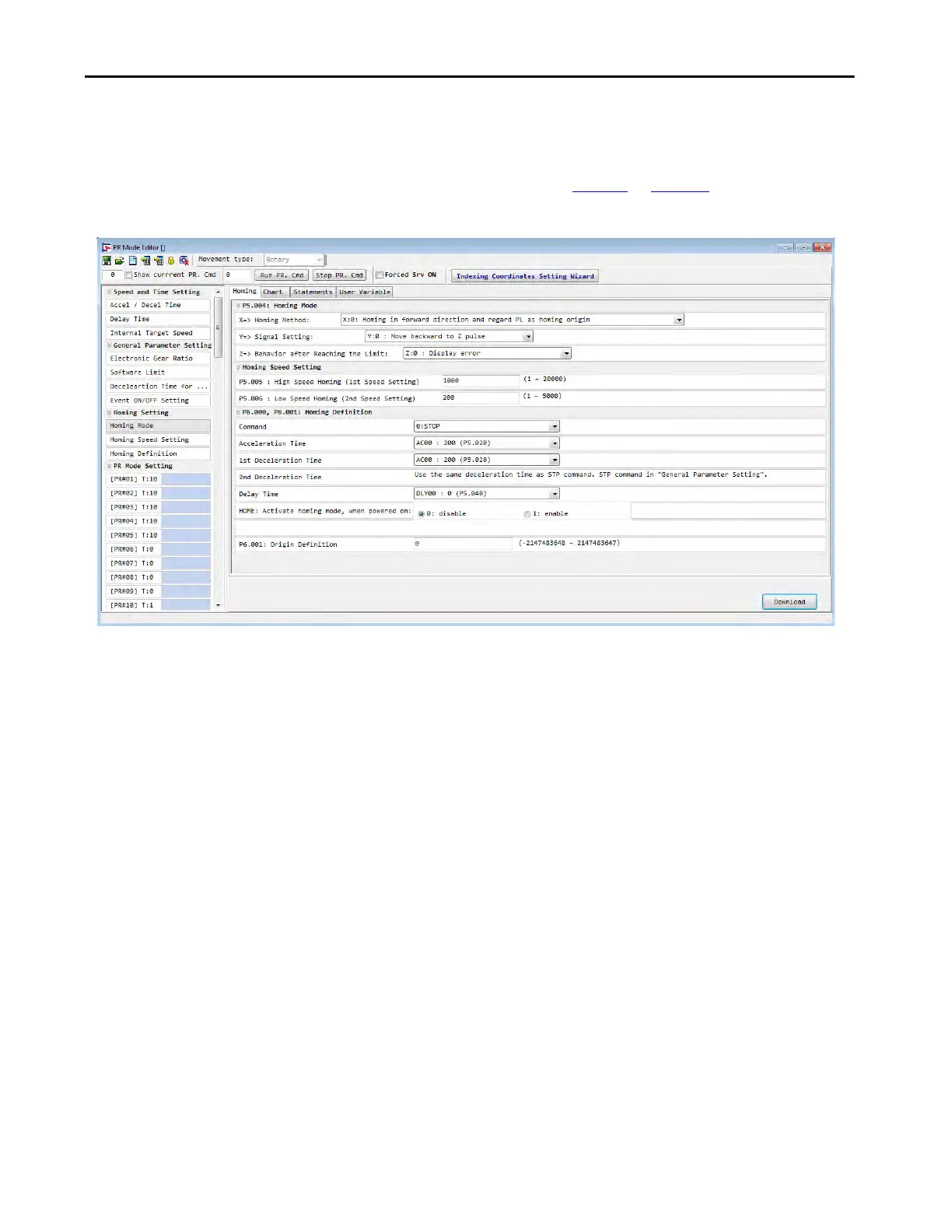

Figure 110 - Homing Tab

PR Mode Setting

PR Mode Setting part of the dialog lets you configure the PR commands.
