Rockwell Automation Publication 2198-UM004A-EN-P - October 2019 327

Motion Control Applications Chapter 12

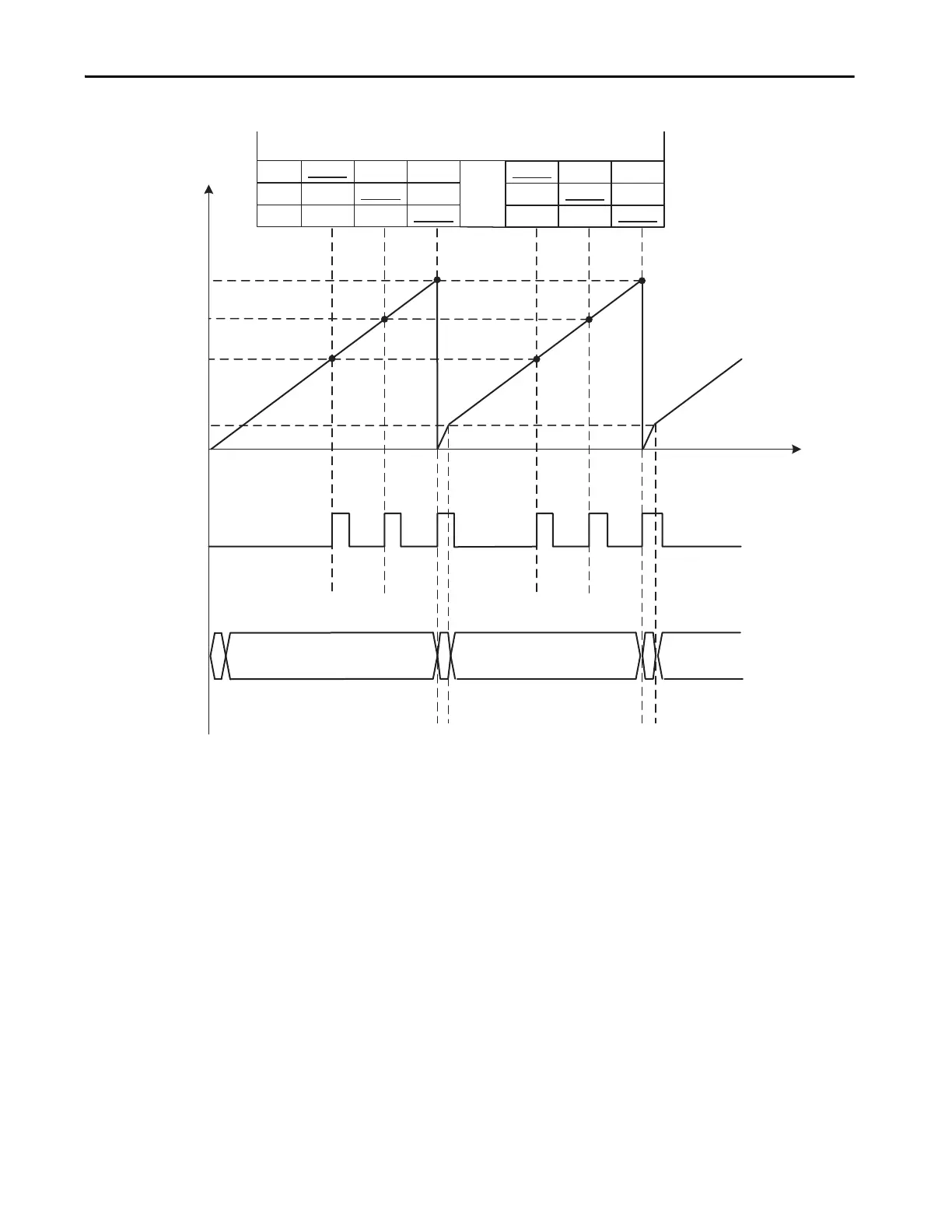

Figure 149 - Application Example of High-speed Compare

CMP axis

position

(PUU)

Time

DO4: CMP

PR path

#45 #45

#46 #46

5000

20000

30000

40000

#1 ~ 7

Data array

20000 20000 20000

#50

30000 30000 30000

#51

40000 40000 40000

#52

(1)

(2)

(3)

Default Chapter2
