AMCC Proprietary 133
Revision 1.01 - February 19, 2007
PPC405 Processor
Preliminary User’s Manual
7.3 Watchdog Timer
The watchdog timer aids system recovery from software or hardware faults.
A watchdog timeout occurs on 01 transitions of a selected bit from the time base, as shown in Table 7-3.
If a watchdog timeout occurs while TSR[WIS] = 0 and TSR[ENW] = 1, a watchdog interrupt occurs if the interrupt is
enabled by TCR[WIE] and MSR[CE]. “Watchdog Timer” on page 11-6 describes register behavior during a
watchdog interrupt.
The interrupt handler should reset the TSR[WIS] bit. This is done by using mtspr to write a word to the TSR having
a 1 in TSR[WIS] and any other bits to be cleared, and a 0 in all other bits. The data written to the TSR is not direct
data, but a mask. A 1 clears a bit and a 0 has no effect.
If a watchdog timeout occurs while TSR[WIS] = 1 and TSR[ENW] = 1, a hardware reset occurs if enabled by a non-
zero value of TCR[WRC]. In other words, a reset can occur if a watchdog timeout occurs while a previous
watchdog timeout is pending. The assumption is that TSR[WIS] was not cleared because the processor could not
execute the watchdog handler, leaving reset as the only way to restart the system. Note that after TCR[WRC] is set
to a non-zero value, it cannot be reset by software. This prevents errant software from disabling the watchdog timer
reset capability. After a reset, the initial value of TCR[WRC] = 00.
Figure 7-5 illustrates the watchdog state machine. The values shown for ENW and WIS relate to the actions
described in Figure 7-4 and the operating mode descriptions that follow Figure 7-4.
Table 7-3. Watchdog Timer Controls
TCR[WP] TBL Bit
Period
(Time Base Clocks)
Period
(200 MHz Clock)
0,0 15 2
17
clocks 0.655 msec
0,1 11 2
21
clocks 10.49 msec
1,0 7 2
25
clocks 0.168 sec
1,1 3 2
29
clocks 2.684 sec

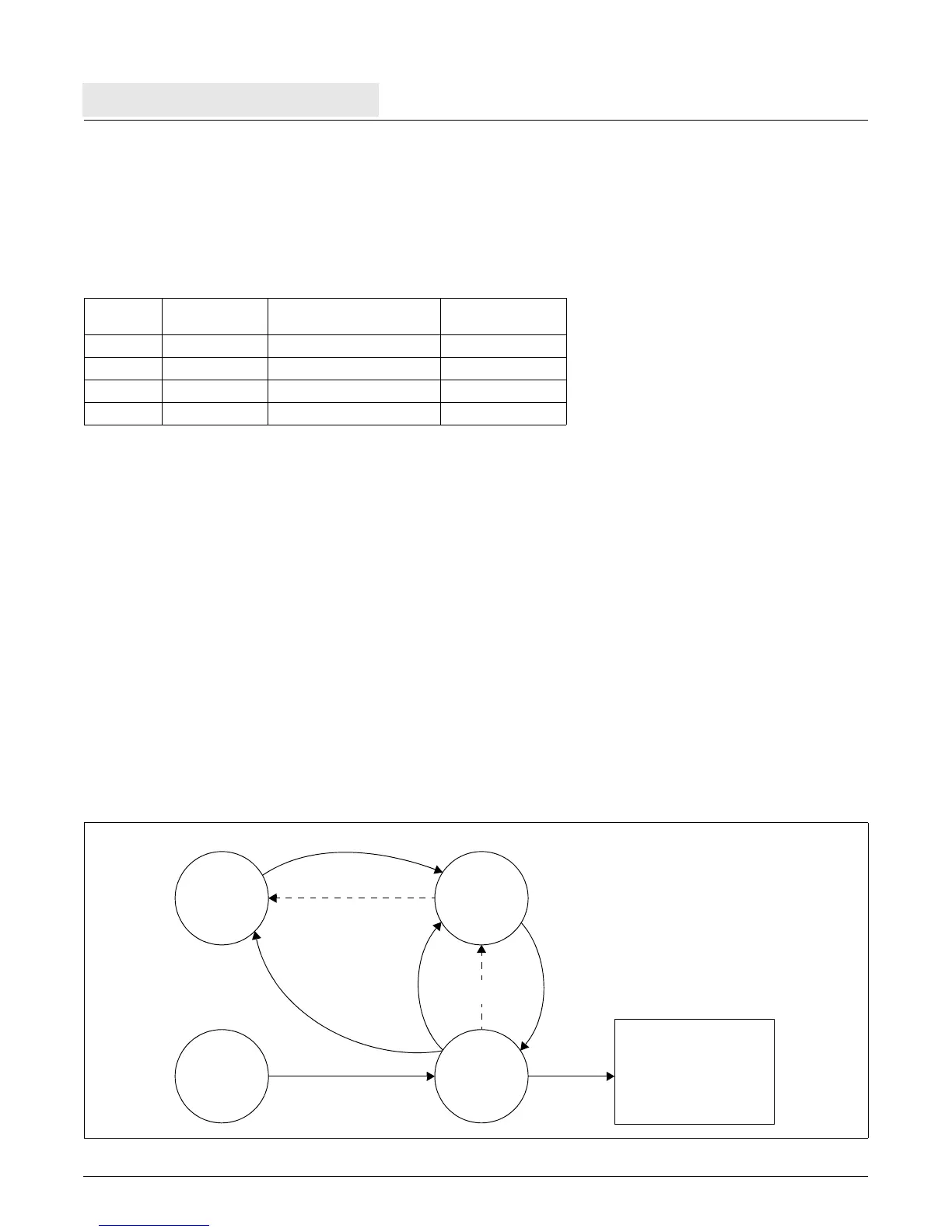

Figure 7-5. Watchdog State Machine
WIS = 0
Time-out, no interrupt
Watchdog timeout occurred, watchdog
Time-out, no interrupt Time-out
(2) SW Loop
(3) SW Loop
(1) Interrupt
Handler
(2) Interrupt
Handler
interrupt will occur if enabled
Value of TCR[WRC]
00 No reset will occur
01 Core reset
10 Chip reset
11 System reset
ENW = 0
WIS = 0
ENW = 1
WIS = 1
ENW = 0
WIS = 1
ENW = 1
